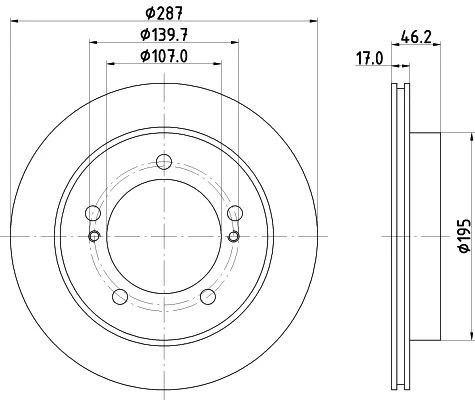

Height (mm)	46.2
Supplementary article/supplementary info 2	without wheel studs without wheel hub without wheel bearing
Outer diameter (mm)	287
Inner diameter (mm)	183.2
Bolt hole circle Ø (mm)	139.7
Wheel bolt bore Ø (mm)	12.8
Brake disc thickness (mm)	17
Centering diameter (mm)	107
Min. thickness (mm)	15
Brake disc type	internally vented
Weight (kg)	4.5
Packaging length (cm)	30.8
Packaging width (cm)	30.8
Packaging height (cm)	12.7
Hole pitch/number	05/07
Fitting position	Front

Product number: MDC1014

2x Mintex Front Vented Brake Discs Pair For Suzuki Jimny Vitara

Out of stock

Price incl. vat.

£ 67,75

Notify me when back in stock

⚠️ Sold As a Pair Check Measurements of old brake discs before ordering.

Description

Brake Disc

Manufacturer	Productnumber
suzuki	5521156B00
suzuki	5521156B00000
suzuki	5521156B00A00
suzuki	5521156B00L00
suzuki	5521156B01
suzuki	5521156B01000
suzuki	5521185C00
suzuki	5521185C00000
suzuki	9998556B00

Usage numbers
A.B.S. 09685910
A.B.S. 16294
A.B.S. 16294OE
A.Z. Meisterteile AZMT440241441
A.Z. Meisterteile AZMT440241487
A.Z. Meisterteile AZMT440241689
ABE C38008ABE
ADVICS H6F602B
AKEBONO BN0870
AKEBONO BN0870E
AKRON-MALÒ 1110638
ALANKO 10305324
APEC DSK941
ASHIKA 6008808
ASHIKA 6008825
ATE 24011701041
ATE 417104
ATE-APAC 24011701041
AUGROS 5972468P
BENDIX 520439
BENDIX 562075B
BENDIX Braking BDS1998
BLUE PRINT ADK84309
BLUE PRINT ADK84322
BLUE PRINT ADK84327
BLUE PRINT ADK84342
BORG & BECK BBD4324
BOSCH 0986478422
BOSCH 0986479A32
BOSCH 0986AB9882
BOSCH BD353
BOSCH F026A01215
Brake ENGINEERING DI955439
BRAXIS AE0300
BRECO BS8230
BREMBO 09685910
BREMBO 09685911
BREMBO 09685914
BREMBO 9685910
BREMSI CD6746V
CAR 142971
CAR HPD971
CHAMPION 562075CH
CIFAM 800501
COMLINE ADC0907V
COMLINE AND6803
DBA Australia DBA514
DELPHI BG3158
DON PCD15512
DYNAMATRIX DBD746
E.T.F. 195600
EBC Brakes D735
EUROBRAKE 5815205207
EUROREPAR 1642757380
EUROREPAR 1687792680
FEBI BILSTEIN 108583
FEBI BILSTEIN 108650
FERODO DDF746
FERODO DDF7461
FOMAR Friction FO2478
FREMAX BD5600
FTE BS4667
GIRLING 6031651
HELLA 8DD355104771
HELLA PAGID 355104771
HELLA PAGID 8DD355104771
HERTH+BUSS JAKOPARTS J3308008
ICER 78BD56002
JAPANPARTS DI808
JAPANPARTS DI825
JAPANPARTS DI825C
JURATEK SUZ114
JURID 562075J
JURID 562075JC
KAVO PARTS BR8709
KAVO PARTS BR8709C
KAWE 649210
LPR S5101V
MAPCO 15592C
METELLI 230501
MGA D1301
MOTAQUIP LVBD871Z
NIPPARTS J3308008
NIPPARTS N3308029
NISSHINBO ND9004
NK 205207
NK 315207
OPTIMAL BS4920
OPTIMAL BS4920C
PAGID 50211
QUINTON HAZELL BDC4667
R BRAKE 78RBD25600
REMSA 649210
RIDEX 82B0499
ROADHOUSE 649210
sbs 1815205207
SWAG 33105212
SWAG 33106390
TEXTAR 92076400
TEXTAR 98200076401
TRISCAN 812069108
TRUSTING DF393
TRW DF3165
TRW DF3165S
VALEO 186628
WOKING D649210
ZIMMERMANN 540248700
ZIMMERMANN 540248720
ZIMMERMANN 540248770
ZIMMERMANN 540248772
ZIMMERMANN 540248775
ZIMMERMANN 540249920

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
suzuki

FAQ

All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.

Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.

On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.

All our brake discs are brand new and meet or exceed OEM standards.
