Shape	square
Lens colour	crystal clear
Light design	led
Fulfils ece standard	r10
Housing colour	black

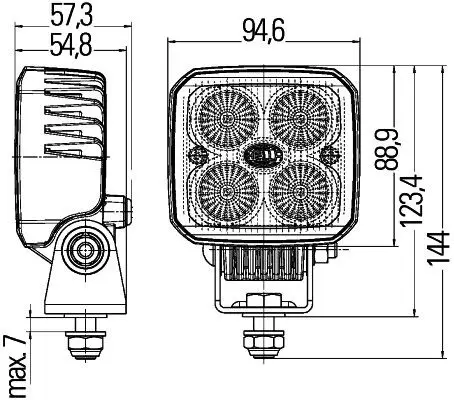

Overall height (mm)	122
Number of leds	4
Voltage from (V)	9
Voltage to (V)	32
Luminous flux (lm)	1200

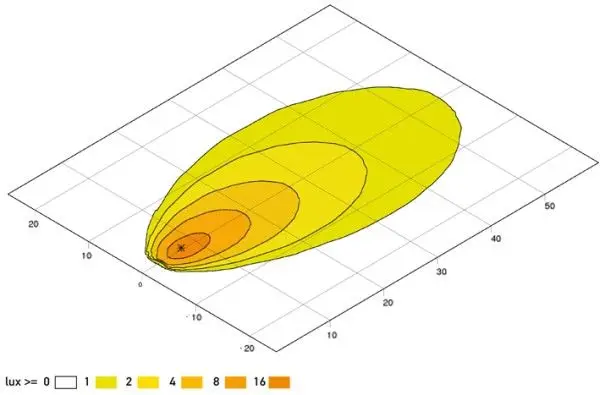

Light distribution	short-range illumination
Light colour	white
Colour temperature (K)	6500
Lens material	polyamid 12
Lens type	patterned lens
Registration type	ece approved
Depth (mm)	65
Height (mm)	91
Quantity	1
Width (mm)	95
Mounting type	bracket mounting
Plug type	open cable ends
Voltage (V)	12 24
Housing material	plastic
Temperature range to (°C)	50
Temperature range from (°C)	-40
Cable length (mm)	500
Prot.type (ip code)	ip6k9k ip6k7
Weight (g)	380
Power consumption (W)	15
Lamp type	led
Theoretical luminous flux (lm)	1500

Product number: 1GA996284-001

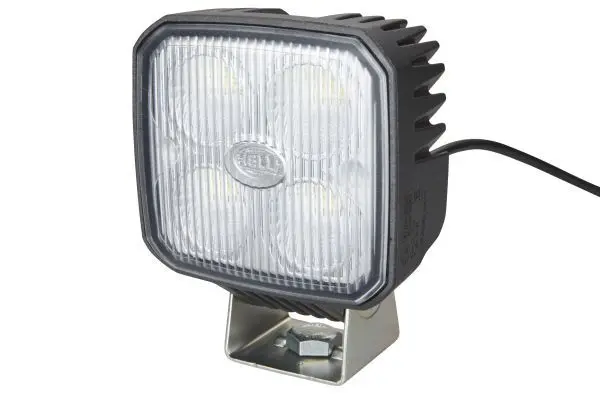

Hella 1GA996284-001 Led Work Light

Description

Manufacturer	Productnumber
iveco	505243495
liebherr	12102122
faun	5643693
agco	ACW5310990
higer	37DV2-15001-A1 , 37DV215001A1

Usage numbers
Q90 compact
HELLA 1GA 996 283-081
HELLA 1GA 996 284-001
HELLA 1GA 996 284-002
HELLA 996 284-001
HELLA 996284001

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
