| Shape | square |
| Lens colour | crystal clear |
| Light design | led |
| Fulfils ece standard | r10 |
| Housing colour | black/grey |

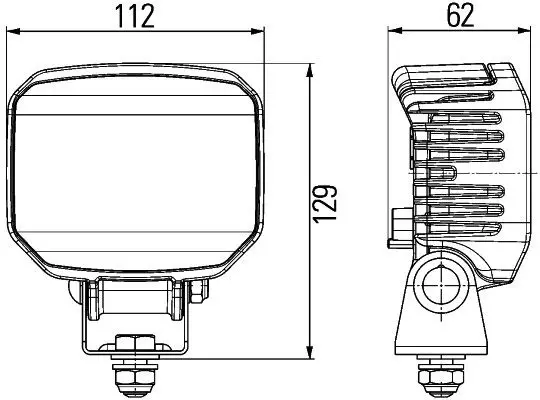

| Overall height (mm) | 129 |
| Number of leds | 6 |
| Voltage from (V) | 9 |
| Voltage to (V) | 33 |
| Luminous flux (lm) | 1300 |
| Light distribution | short-range illumination |
| Light colour | white |
| Colour temperature (K) | 5700 |
| Lens material | polyamid 12 |
| Lens type | patterned lens |
| Registration type |
|
| Depth (mm) | 62 |
| Height (mm) | 97 |
| Quantity | 1 |
| Width (mm) | 112 |
| Mounting type | bracket mounting |
| Plug type | deutsch plug |
| Voltage (V) |
|
| Housing material | die-cast aluminium |
| Temperature range to (°C) | 50 |
| Temperature range from (°C) | -40 |
| Cable length (mm) | 200 |
| Prot.type (ip code) |
|
| Weight (g) | 615 |
| Power consumption (W) | 22 |
| Lamp type | led |
| Theoretical luminous flux (lm) | 1625 |
| Manufacturer | Productnumber |
| hyundai | 21WD-32160 , 21WD32160 |
| mercedes-benz | 663 544 00 47 , 6635440047 |
| mercedes-benz | A 663 544 00 47 , A6635440047 |
| volvo | 15670553 |
| caterpillar | 451-5632 , 4515632 |
| krone | 515108890 |
| liebherr | 1 162 121 2 , 11621212 |
| komatsu | 5258408 |
| feldbinder | 1111063 |
| kÄssbohrer | 7.517.159.000.0 , 75171590000 |
| rosenbauer | 18430A |
| rosenbauer | FE6027 |
| hyundai (cnj) | 21WD-32160 , 21WD32160 |
| Usage numbers |
| 1557LED |
| Power Beam 1500 |
| HELLA 1GA 996 288-011 |
| HELLA 1GA 996 288-012 |
| HELLA 1GA 996 288-017 |
| HELLA 1GA 996 288-018 |
| HELLA 1GA 996 288-057 |
| HELLA 1GA 996 288-147 |
| HELLA 1GA 996 388-011 |
| HELLA 996 288-011 |
| HELLA 996288011 |
