| Hole pitch/number | 05/06 |
| Packaging height (cm) | 10.5 |
| Packaging width (cm) | 35.8 |
| Packaging length (cm) | 35.8 |
| Weight (kg) | 12.5 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 28.4 |
| Centering diameter (mm) | 75 |
| Surface | coated |
| Brake disc thickness (mm) | 30 |
| Machining | high-carbon |
| Wheel bolt bore Ø (mm) | 16.7 |
| Bolt hole circle Ø (mm) | 120 |
| Inner diameter (mm) | 153.8 |
| Outer diameter (mm) | 348 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 73.1 |
| Paired article number | 92320405 |
| Fitting position | Front Right |
Upgrade or maintain your vehicle with the high-quality TEXTAR Brake Disc Single Brake Disc — part number 92320505, available now at A-Z Halifax.
This product has been carefully selected for its reliability, performance, and compatibility with a wide range of vehicles. Whether you're working on routine maintenance or a major repair, the TEXTAR Brake Disc Single offers excellent value and dependable performance you can trust.
At A-Z Halifax, we stock thousands of car parts and accessories to make your repair job easier and more efficient. Our experienced team is always available to help ensure you’re choosing the right part for your needs.
| Manufacturer | Productnumber |
| bmw | 34116871800 |
| bmw | 6871800 |
| Usage numbers |
| A.B.S. 18595 |
| APEC DSK3605 |
| ATE 24013002501 |
| ATE-APAC 24013002501 |
| BENDIX Braking BDS2209RHC |
| BORG & BECK BBD6278S |
| CAR 1422102 |
| DELPHI BG9345C |
| DON PCD20431 |
| EBC Brakes D2133 |
| HELLA 8DD355133201 |
| HELLA PAGID 355133201 |
| HELLA PAGID 8DD355133201 |
| KAWE 6252911 |
| KAWE 6253010 |
| MINTEX MDC2960RC |
| National NBD2258 |
| OPTIMAL BS0264HC |
| PAGID 56205HC |
| REMSA 6252911 |
| REMSA 6253010 |
| ROADHOUSE 6252911 |
| ROADHOUSE 6253010 |
| TEXTAR 98200320501 |
| WOKING D6252911 |
| WOKING D6253010 |
| ZIMMERMANN 150295020 |
| ZIMMERMANN 150295052 |
| Singletextardisc |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 bmw |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

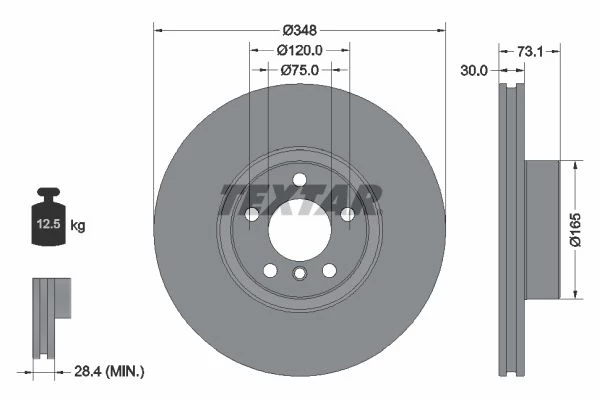

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
