| Supplementary article/supplementary info 2 |
|

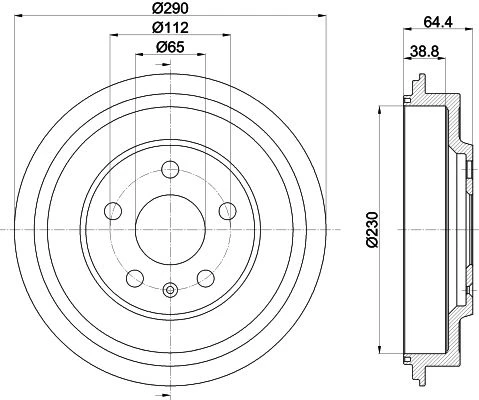

| Bolt hole circle Ø (mm) | 112 |
| Wheel bolt bore Ø (mm) | 15.8 |
| Centering diameter (mm) | 65 |
| Inner brake drum diameter (mm) | 230 |
| Outer brake drum diameter (mm) | 290 |
| Max. brake drum reboring dimension (mm) | 231.5 |
| Inner brake drum height (mm) | 39 |
| Total brake drum height (mm) | 64 |
| Weight (kg) | 7 |
| Packaging length (cm) | 30.8 |
| Packaging width (cm) | 30.4 |
| Packaging height (cm) | 8.6 |
| Hole pitch/number | 05/06 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| audi | 5C0609617A |
| seat | 5C0609617A |
| skoda | 5C0609617A |
| vw | 5C0609617A |
| Usage numbers |
| A.B.S. 2910S |
| ASHIKA 56000911 |
| BENDIX Braking BDM1116 |
| BOSCH 0986477307 |
| BRECO BT1180 |
| DELPHI BF561 |
| EUROBRAKE 5825254733 |
| FERODO FDR329796 |
| FREMAX BD5639 |
| HELLA 8DT355302561 |
| HELLA PAGID 355302561 |
| HELLA PAGID 8DT355302561 |
| JAPANPARTS TA0911 |
| JAPANPARTS TA0911C |
| JAPKO 560911 |
| JAPKO 560911C |
| JURID 329796J |
| NK 254733 |
| PAGID 61396 |
| sbs 1825254733 |
| sbs 254733 |
| TEXTAR 94039300 |
| TEXTAR 98100039301 |
| VALEO 237054 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 vw |
You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.
Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.
Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.
Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.
Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.
The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
