| Supplementary article/supplementary info 2 |
|

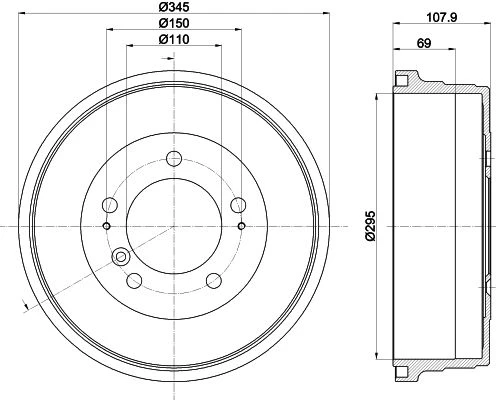

| Bolt hole circle Ø (mm) | 150 |
| Wheel bolt bore Ø (mm) | 16.6 |
| Centering diameter (mm) | 110 |
| Inner brake drum diameter (mm) | 295 |
| Outer brake drum diameter (mm) | 345 |
| Max. brake drum reboring dimension (mm) | 297 |
| Inner brake drum height (mm) | 69 |
| Total brake drum height (mm) | 108 |
| Weight (kg) | 12.1 |
| Packaging length (cm) | 36.3 |
| Packaging width (cm) | 35.9 |
| Packaging height (cm) | 12.1 |
| Hole pitch/number | 05/08 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| toyota | 4243160250 |
| Usage numbers |
| ASHIKA 5602224 |
| DELPHI BF628 |
| FREMAX BD4394 |
| HELLA 8DT355302551 |
| HELLA PAGID 355302551 |
| HELLA PAGID 8DT355302551 |
| JAPANPARTS TA224 |
| JAPANPARTS TA224C |
| JAPKO 56224 |
| JAPKO 56224C |
| KAVO PARTS BD9635 |
| NK 254535 |
| PAGID 61403 |
| sbs 1825254535 |
| sbs 254535 |
| TEXTAR 94040000 |
| TEXTAR 98100040001 |
| TRW DB7030 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.
Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.
Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.
Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.
Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.
The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
