| Supplementary article/supplementary info 2 |
|

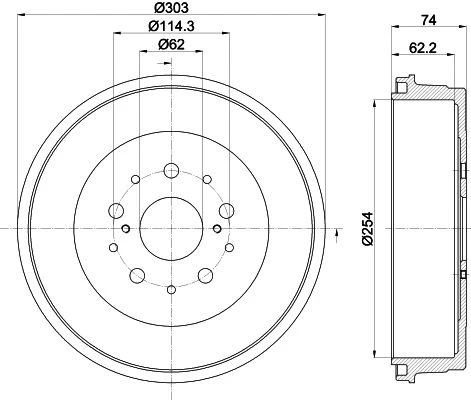

| Bolt hole circle Ø (mm) | 114.3 |
| Wheel bolt bore Ø (mm) | 14.4 |
| Centering diameter (mm) | 62 |
| Inner brake drum diameter (mm) | 254 |
| Outer brake drum diameter (mm) | 303 |
| Max. brake drum reboring dimension (mm) | 256 |
| Inner brake drum height (mm) | 62 |
| Total brake drum height (mm) | 74 |
| Weight (kg) | 8.8 |
| Packaging length (cm) | 36.3 |
| Packaging width (cm) | 35.9 |
| Packaging height (cm) | 10.1 |
| Hole pitch/number | 05/12 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| toyota | 424310K080 |
| toyota | 424310K090 |
| toyota | 424310K220 |
| Usage numbers |
| A.B.S. 2866S |
| ABE C62048ABE |
| AKRON-MALÒ 1120074 |
| APEC DRM9997 |
| ASHIKA 5602222 |
| BENDIX Braking BDM1113 |
| BLUE PRINT ADT34720 |
| BORG & BECK BBR7227 |
| BOSCH 0986477326 |
| BRECO BT1176 |
| BRECO BT1177 |
| BREMBO 14D63610 |
| DBA Australia DBA1869 |
| DELPHI BF545 |
| EUROBRAKE 5825254526 |
| FERODO FDR329804 |
| HELLA 8DT355302511 |
| HELLA PAGID 355302511 |
| HELLA PAGID 8DT355302511 |
| HERTH+BUSS JAKOPARTS J3402057 |
| Hi-Q SD4055 |
| JAPANPARTS TA222 |
| JAPANPARTS TA222C |
| JAPKO 56222 |
| JAPKO 56222C |
| JURID 329804J |
| KAVO PARTS BD9627 |
| KAVO PARTS BD9651 |
| NIPPARTS N3402074 |
| NK 254526 |
| PAGID 61389 |
| REMSA 717400 |
| RIDEX 123B0119 |
| ROADHOUSE 717400 |
| sbs 1825254526 |
| TEXTAR 94038600 |
| TEXTAR 98100038601 |
| TRW DB7041 |
| WOKING B717400 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
