Supplementary article/supplementary info 2	without wheel studs without wheel hub without wheel bearing

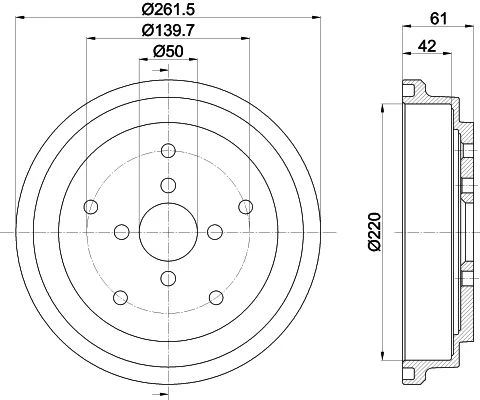

Bolt hole circle Ø (mm)	139.7
Wheel bolt bore Ø (mm)	12
Centering diameter (mm)	50
Inner brake drum diameter (mm)	220
Outer brake drum diameter (mm)	261
Max. brake drum reboring dimension (mm)	222
Inner brake drum height (mm)	42
Total brake drum height (mm)	61
Weight (kg)	5
Packaging length (cm)	30.8
Packaging width (cm)	30.4
Packaging height (cm)	8.6
Hole pitch/number	05/09
Fitting position	Rear

Product number: MBD389

Mintex Rear Brake Drum For Suzuki Vitara

Out of stock

Price incl. vat.

£ 38,71

Notify me when back in stock

Description

Brake Drum

Manufacturer	Productnumber
suzuki	4351160A00
suzuki	4351160A00000

Usage numbers
A.B.S. 2689S
APEC DRM9187
ASHIKA 5608803
BLUE PRINT ADK84708
BORG & BECK BBR7177
DBA Australia DBA1837
EUROBRAKE 5825255214
HELLA 8DT355302981
HELLA PAGID 355302981
HELLA PAGID 8DT355302981
JAPANPARTS TA803
JAPANPARTS TA803C
JAPKO 56803
JAPKO 56803C
KAVO PARTS BD8853
NIPPARTS J3408005
NK 255214
PAGID 61438
sbs 1825255214
sbs 255214
TEXTAR 94043500
TEXTAR 98100043501
TRW DB4231

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
