| Supplementary article/supplementary info 2 |
|

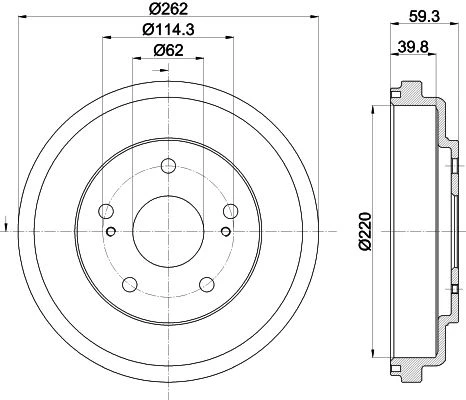

| Bolt hole circle Ø (mm) | 114.3 |
| Wheel bolt bore Ø (mm) | 12.6 |
| Centering diameter (mm) | 62 |
| Inner brake drum diameter (mm) | 220 |
| Outer brake drum diameter (mm) | 262 |
| Max. brake drum reboring dimension (mm) | 221 |
| Inner brake drum height (mm) | 40 |
| Total brake drum height (mm) | 59 |
| Weight (kg) | 5.2 |
| Packaging length (cm) | 30.8 |
| Packaging width (cm) | 30.4 |
| Packaging height (cm) | 8.6 |
| Hole pitch/number | 05/07 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| suzuki | 4351180J00 |
| suzuki | 4351180J00000 |
| Usage numbers |
| BENDIX Braking BDM1179 |
| BORG & BECK BBR7296 |
| DELPHI BF609 |
| EUROBRAKE 5825255221 |
| HELLA 8DT355303241 |
| HELLA PAGID 355303241 |
| HELLA PAGID 8DT355303241 |
| HERTH+BUSS JAKOPARTS J3408026 |
| KAVO PARTS BD8865 |
| NK 255221 |
| PAGID 61480 |
| TEXTAR 94047700 |
| TEXTAR 98100047701 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 suzuki |
