| Supplementary article/supplementary info 2 |
|

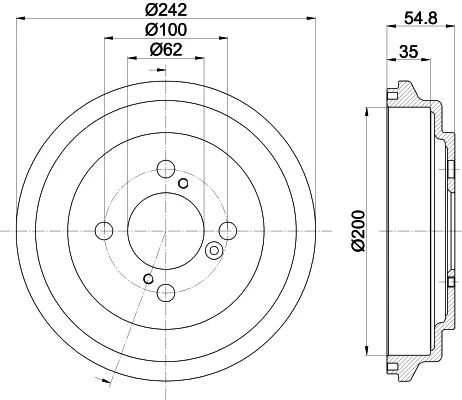

| Bolt hole circle Ø (mm) | 100 |
| Wheel bolt bore Ø (mm) | 14.3 |
| Centering diameter (mm) | 62 |
| Inner brake drum diameter (mm) | 200 |
| Outer brake drum diameter (mm) | 242 |
| Max. brake drum reboring dimension (mm) | 202 |
| Inner brake drum height (mm) | 35 |
| Total brake drum height (mm) | 55 |
| Weight (kg) | 3.6 |
| Packaging length (cm) | 26.3 |
| Packaging width (cm) | 25.9 |
| Packaging height (cm) | 8.6 |
| Hole pitch/number | 04/07 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| suzuki | 4351168L00 |
| suzuki | 4351168L00000 |
| suzuki | 4351171L00 |
| suzuki | 4351171L00000 |
| Usage numbers |
| A.B.S. 2938S |
| APEC DRM9204 |
| BENDIX Braking BDM1168 |
| BLUE PRINT ADBP470031 |
| BORG & BECK BBR7287 |
| DBA Australia DBA1952 |
| EUROBRAKE 5825255218 |
| HELLA 8DT355303291 |
| HELLA PAGID 355303291 |
| HELLA PAGID 8DT355303291 |
| HERTH+BUSS JAKOPARTS J3408031 |
| KAVO PARTS BD8876 |
| NIPPARTS N3408019 |
| NK 255218 |
| PAGID 61472 |
| sbs 1825255218 |
| TEXTAR 94046900 |
| TEXTAR 98100046901 |
| TRW DB4476 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 suzuki |
You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.
Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.
Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.
Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.
Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.
The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
