| Supplementary article/supplementary info 2 |
|

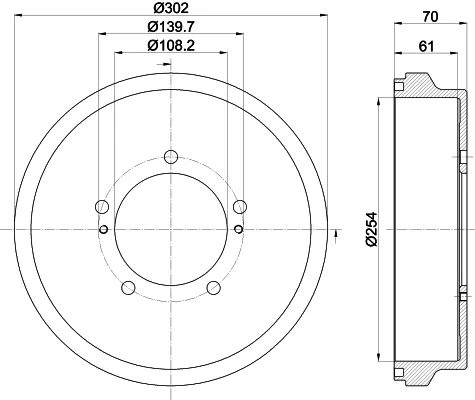

| Bolt hole circle Ø (mm) | 139.7 |
| Wheel bolt bore Ø (mm) | 12.5 |
| Centering diameter (mm) | 108.2 |
| Inner brake drum diameter (mm) | 254 |
| Outer brake drum diameter (mm) | 302 |
| Max. brake drum reboring dimension (mm) | 256 |
| Inner brake drum height (mm) | 61 |
| Total brake drum height (mm) | 70 |
| Weight (kg) | 8.1 |
| Packaging length (cm) | 36.3 |
| Packaging width (cm) | 35.9 |
| Packaging height (cm) | 10.1 |
| Hole pitch/number | 05/07 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| suzuki | 4351152D00 |
| Usage numbers |
| A.B.S. 2830S |
| ASHIKA 5608812 |
| DELPHI BF512 |
| EUROBRAKE 5825255215 |
| FREMAX BD6009 |
| HELLA 8DT355302721 |
| HELLA PAGID 355302721 |
| HELLA PAGID 8DT355302721 |
| HERTH+BUSS JAKOPARTS J3408018 |
| JAPANPARTS TA812C |
| JAPKO 56812C |
| KAVO PARTS BD8872 |
| NIPPARTS N3408014 |
| NK 255215 |
| PAGID 61413 |
| sbs 1825255215 |
| sbs 255215 |
| TEXTAR 94041000 |
| TEXTAR 98100041001 |
| TRW DB4447 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 suzuki |
You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.
Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.
Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.
Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.
Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.
The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
