| Supplementary article/supplementary info 2 |
|

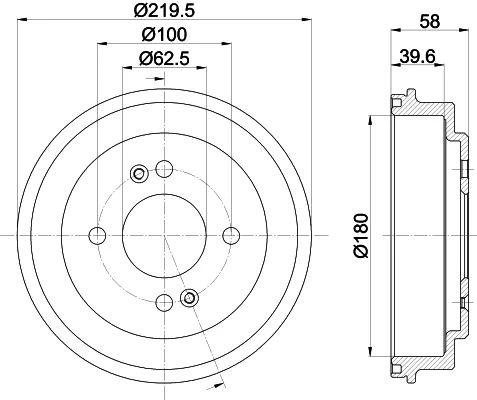

| Bolt hole circle Ø (mm) | 100 |
| Wheel bolt bore Ø (mm) | 12.5 |
| Centering diameter (mm) | 62.5 |
| Inner brake drum diameter (mm) | 180 |
| Outer brake drum diameter (mm) | 220 |
| Max. brake drum reboring dimension (mm) | 182 |
| Inner brake drum height (mm) | 40 |
| Total brake drum height (mm) | 58 |
| Weight (kg) | 3.5 |
| Packaging length (cm) | 23.3 |
| Packaging width (cm) | 22.9 |
| Packaging height (cm) | 8.6 |
| Hole pitch/number | 04/06 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| kia | 5841107000 |
| Usage numbers |
| APEC DRM9980 |
| ASHIKA 560KK17 |
| ATE 24021800501 |
| BENDIX Braking BDM1143 |
| BLUE PRINT ADG04719 |
| BORG & BECK BBR7224 |
| BOSCH 0986477278 |
| Brake ENGINEERING DR962442 |
| DELPHI BF550 |
| EUROBRAKE 5825253511 |
| FTE 9190028 |
| FTE BT1045 |
| HELLA 8DT355303031 |
| HELLA PAGID 355303031 |
| HELLA PAGID 8DT355303031 |
| HERTH+BUSS JAKOPARTS J3400311 |
| Hi-Q SD2048 |
| JAPANPARTS TAK17 |
| JAPANPARTS TAK17C |
| JAPKO 56K17 |
| JAPKO 56K17C |
| KAVO PARTS BD4356 |
| MAXGEAR 193203 |
| MEYLE 28155230018 |
| NIPPARTS N3400307 |
| NK 253511 |
| PAGID 61444 |
| RIDEX 123B0172 |
| sbs 1825253511 |
| TEXTAR 94044100 |
| TEXTAR 98100044101 |
| VALEO 237059 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 kia |
