| Supplementary article/supplementary info 2 |
|

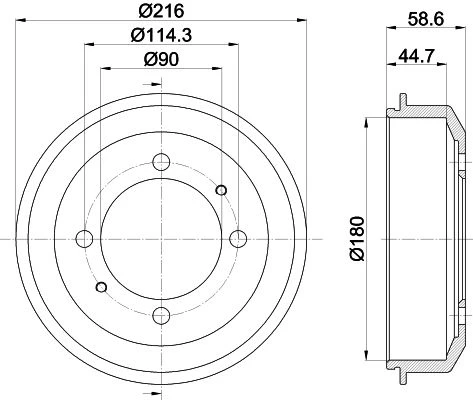

| Bolt hole circle Ø (mm) | 114.3 |
| Wheel bolt bore Ø (mm) | 12.8 |
| Centering diameter (mm) | 90 |
| Inner brake drum diameter (mm) | 180 |
| Outer brake drum diameter (mm) | 216 |
| Max. brake drum reboring dimension (mm) | 182 |
| Inner brake drum height (mm) | 45 |
| Total brake drum height (mm) | 59 |
| Weight (kg) | 3.3 |
| Packaging length (cm) | 23.3 |
| Packaging width (cm) | 22.9 |
| Packaging height (cm) | 8.6 |
| Hole pitch/number | 04/06 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| hyundai | 5841122000 |
| hyundai | 5841122010 |
| hyundai | 5841122020 |
| Usage numbers |
| A.B.S. 2631S |
| A.Z. Meisterteile AZMT440281121 |
| ABE C60501ABE |
| APEC DRM9171 |
| ASHIKA 56H0001 |
| ATE 24021800271 |
| BORG & BECK BBR7153 |
| BOSCH 0986477181 |
| Brake ENGINEERING DR962341 |
| DBA Australia DBA1677 |
| DELPHI BF435 |
| EUROBRAKE 5825253405 |
| FERODO FDR329321 |
| HELLA 8DT355302461 |
| HELLA PAGID 355302461 |
| HELLA PAGID 8DT355302461 |
| HERTH+BUSS JAKOPARTS J3400503 |
| JAPANPARTS TAH01 |
| JAPANPARTS TAH01C |
| JAPKO 56H01 |
| JAPKO 56H01C |
| JURID 329321J |
| KAVO PARTS BD3359 |
| LPR 7D0450 |
| MAXGEAR 192312 |
| NIPPARTS N3400507 |
| NK 253405 |
| OPTIMAL BT1850 |
| PAGID 61380 |
| QUINTON HAZELL BDR526 |
| sbs 1825253405 |
| TEXTAR 94037700 |
| TEXTAR 98100037701 |
| TRW DB4283 |
| TRW DB4332 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 hyundai |
You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.
Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.
Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.
Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.
Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.
The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
