| Supplementary article/supplementary info 2 |
|

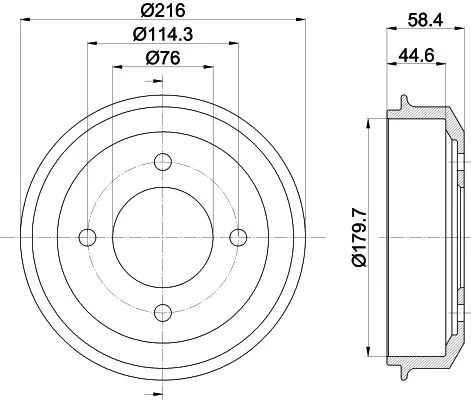

| Bolt hole circle Ø (mm) | 114.3 |
| Wheel bolt bore Ø (mm) | 12.8 |
| Centering diameter (mm) | 76 |
| Inner brake drum diameter (mm) | 180 |
| Outer brake drum diameter (mm) | 216 |
| Max. brake drum reboring dimension (mm) | 182 |
| Inner brake drum height (mm) | 45 |
| Total brake drum height (mm) | 58 |
| Weight (kg) | 3.1 |
| Packaging length (cm) | 23.3 |
| Packaging width (cm) | 22.9 |
| Packaging height (cm) | 8.6 |
| Hole pitch/number | 04/04 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| hyundai | 5841122100 |
| Usage numbers |
| A.B.S. 2776S |
| ASHIKA 560HH16 |
| ATE 24021800341 |
| BARUM 329319B |
| BENDIX 329319B |
| BLUE PRINT ADG04721 |
| BORG & BECK BBR7197 |
| BORG & BECK BBR7222 |
| BOSCH 0986477182 |
| DELPHI BF435 |
| EUROBRAKE 5825253404 |
| FERODO FDR329319 |
| HELLA 8DT355300861 |
| HELLA PAGID 355300861 |
| HELLA PAGID 8DT355300861 |
| HERTH+BUSS JAKOPARTS J3400505 |
| Hi-Q SD1003 |
| JAPANPARTS TAH16 |
| JAPANPARTS TAH16C |
| JAPKO 56H16 |
| JAPKO 56H16C |
| JURID 329319J |
| KAVO PARTS BD3358 |
| MAXGEAR 191345 |
| MGA T7577 |
| NIPPARTS N3400528 |
| NK 253404 |
| OPTIMAL BT1530 |
| PAGID 61303 |
| RIDEX 123B0114 |
| sbs 1825253404 |
| TEXTAR 94030300 |
| TEXTAR 98100030301 |
| TRW DB4267 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 hyundai |
You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.
Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.
Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.
Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.
Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.
The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
