| Supplementary article/supplementary info 2 |
|

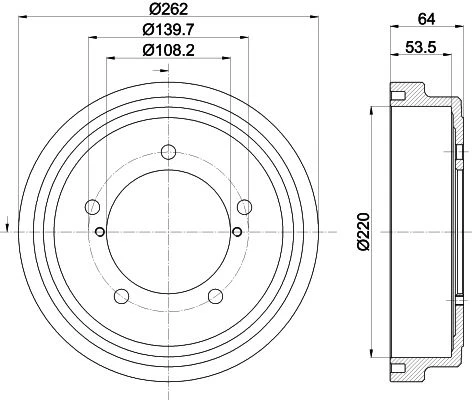

| Bolt hole circle Ø (mm) | 139.7 |
| Wheel bolt bore Ø (mm) | 12.7 |
| Centering diameter (mm) | 108.2 |
| Inner brake drum diameter (mm) | 220 |
| Outer brake drum diameter (mm) | 262 |
| Max. brake drum reboring dimension (mm) | 222 |
| Inner brake drum height (mm) | 54 |
| Total brake drum height (mm) | 64 |
| Weight (kg) | 5.6 |
| Packaging length (cm) | 30.8 |
| Packaging width (cm) | 30.4 |
| Packaging height (cm) | 8.6 |
| Hole pitch/number | 05/07 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| chevrolet | 30024672 |
| suzuki | 43511065010 |
| suzuki | 4351165D10 |
| suzuki | 4351167D01 |
| Usage numbers |
| ABE C68021ABE |
| ASHIKA 5608805 |
| ATE 24022200031 |
| BENDIX Braking BDM1157 |
| BLUE PRINT ADK84705 |
| DBA Australia DBA1839 |
| DBA Australia DBA1912 |
| DELPHI BF531 |
| FTE 9190022 |
| FTE BT1038 |
| HELLA 8DT355303171 |
| HELLA PAGID 355303171 |
| HELLA PAGID 8DT355303171 |
| HERTH+BUSS JAKOPARTS J3408021 |
| JAPANPARTS TA805 |
| JAPANPARTS TA805C |
| JAPKO 56805 |
| JAPKO 56805C |
| JP GROUP 4763500200 |
| JP GROUP 4763500300 |
| KAVO PARTS BD8864 |
| MAXGEAR 193222 |
| NIPPARTS N3408020 |
| PAGID 61460 |
| PAGID 61460N |
| RIDEX 123B0116 |
| TEXTAR 94045700 |
| TEXTAR 98100045701 |
| TRW DB4444 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 suzuki |
