| Hole pitch/number | 05/06 |
| Packaging height (cm) | 11.5 |
| Packaging width (cm) | 34.3 |
| Packaging length (cm) | 34.3 |
| Weight (kg) | 7.5 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 18 |
| Centering diameter (mm) | 63.5 |
| Surface | coated |
| Brake disc thickness (mm) | 20 |
| Machining | high-carbon |
| Wheel bolt bore Ø (mm) | 15.7 |
| Bolt hole circle Ø (mm) | 108 |
| Inner diameter (mm) | 160 |
| Outer diameter (mm) | 325 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 42 |
| Fitting position | Rear |
| Usage numbers |
| A.B.S. 09C20911 |
| A.B.S. 18557 |
| ABE C4J005ABEP |
| APEC DSK3380 |
| APEC DSK3400 |
| APEC SDK6962 |
| ATE 24012002561 |
| ATE-APAC 24012002561 |
| BENDIX Braking BDS1611HC |
| BLUE PRINT ADJ134372 |
| BORG & BECK BBD5471 |
| BRECO BV9236 |
| BRECO BZ9536 |
| BREMBO 09C20911 |
| BREMBO 09E02823 |
| BREMSI CD8432V |
| CAR 1422003 |
| COMLINE ADC2933V |
| COMLINE ADC4065V |
| COMLINE ADC5222V |
| COMLINE ADC5224V |
| COMLINE AND7507 |
| COMLINE AND7509 |
| DBA Australia DBA3025E |
| DBA Australia DBA3025S |
| DELPHI BG4786C |
| DELPHI BG4786C18B1 |
| DON PCD19902 |
| EBC Brakes D2048 |
| EBC Brakes D2159 |
| EBC Brakes GD2159 |
| EBC Brakes USR2159 |
| EUROBRAKE 5815311229 |
| EUROREPAR 1676011680 |
| EUROREPAR 1684335280 |
| EUROREPAR 1686727280 |
| FEBI BILSTEIN 106493 |
| FERODO DDF2996C |
| FERODO DDF2996C1D |
| FREMAX BD7373 |
| HELLA 8DD355132601 |
| HELLA PAGID 355132601 |
| HELLA PAGID 8DD355132601 |
| HERTH+BUSS JAKOPARTS J3310829 |
| ICER 78BD73732 |
| JAPANPARTS DPL12C |
| JAPKO 61L12C |
| JURATEK LAN136 |
| JURID 563390JC1 |
| JURID 563403JC1 |
| JURID 563639JC |
| KAVO PARTS BR10065C |
| KAWE 6175910 |
| LPR J1024V |
| MINTEX MDC2920C |
| MINTEX MDC82920C |
| MOTAQUIP LVBD1882 |
| NAPA PBD8733 |
| NK 311229 |
| OPTIMAL BS9656HC |
| OPTIMAL BS9704C |
| OPTIMAL BS9726C |
| PAGID 56143HC |
| PAGID 56143NHC |
| PAGID T2461N56143N00 |
| QUINTON HAZELL BDC6238 |
| REMSA 6175910 |
| RIDEX 82B1834 |
| ROADHOUSE 6175910 |
| sbs 1815311229 |
| SWAG 22106493 |
| TEXTAR 98200314301 |
| TRISCAN 8120101155C |
| TRW DF6706S |
| TRW DF8245S |
| ZIMMERMANN 290227120 |
| ZIMMERMANN 290227152 |
| ZIMMERMANN 290227153 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 jaguar |
||||||||
 land rover |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

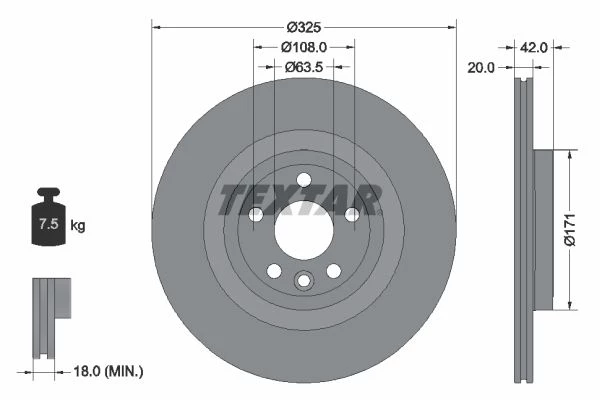

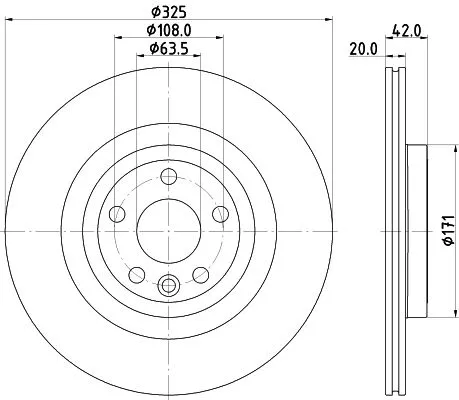

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
