| Hole pitch/number | 05/06 |
| Packaging height (cm) | 14.5 |
| Packaging width (cm) | 34.3 |
| Packaging length (cm) | 34.3 |
| Weight (kg) | 9.5 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 23.4 |
| Centering diameter (mm) | 67 |
| Surface | coated |
| Brake disc thickness (mm) | 26 |
| Wheel bolt bore Ø (mm) | 15.3 |
| Bolt hole circle Ø (mm) | 112 |
| Inner diameter (mm) | 158 |
| Outer diameter (mm) | 330 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 58.1 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| mercedes-benz | 2304230812 |
| mercedes-benz | 230423081264 |
| mercedes-benz | A2304230812 |
| mercedes-benz | A230423081264 |
| Usage numbers |
| A.B.S. 09B84231 |
| A.B.S. 17793 |
| A.B.S. 17793OE |
| ALANKO 10303179 |
| APEC DSK2738 |
| ATE 426149 |
| BENDIX 521789 |
| BLUE PRINT ADU1743106 |
| BORG & BECK BBD4679 |
| BRECO BV9004 |
| BREMBO 09B84231 |
| CAR 1421371 |
| DELPHI BG4982C |
| FEBI BILSTEIN 26403 |
| HELLA 8DD355116281 |
| HELLA 8DD355116282 |
| HELLA PAGID 355116281 |
| HELLA PAGID 355116282 |
| HELLA PAGID 8DD355116281 |
| HELLA PAGID 8DD355116282 |
| KAWE 6174010 |
| MINTEX MDC2116 |
| OPTIMAL BS7872 |
| OPTIMAL BS7872C |
| PAGID 54979 |
| PAGID 54979PRO |
| QUINTON HAZELL BDC5644 |
| REMSA 6174010 |
| ROADHOUSE 6174010 |
| STELLOX 60204526VKSX |
| SWAG 10926403 |
| TEXTAR 92197905 |
| TEXTAR 98200197901 |
| TRW DF8253S |
| WOKING D6174010 |
| ZIMMERMANN 400367520 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mercedes-benz |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

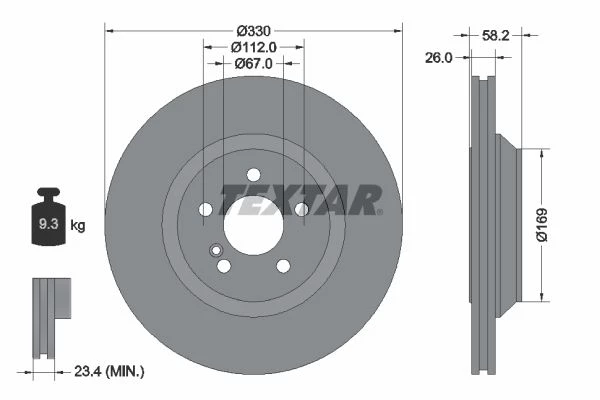

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
