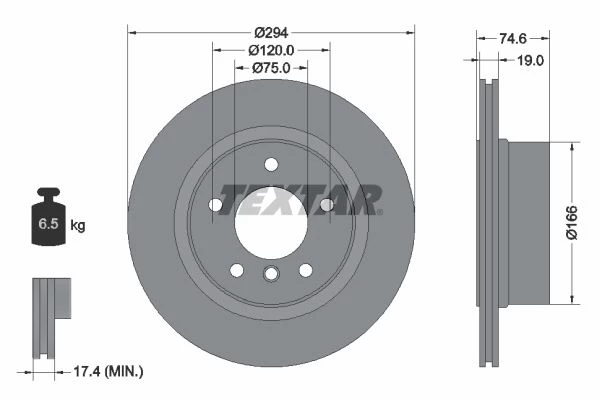

| Hole pitch/number | 05/06 |
| Packaging height (cm) | 18.5 |
| Packaging width (cm) | 30.8 |
| Packaging length (cm) | 30.8 |
| Weight (kg) | 6.5 |
| Brake disc type | externally vented |
| Min. thickness (mm) | 17.4 |
| Centering diameter (mm) | 75 |
| Surface | coated |
| Brake disc thickness (mm) | 19 |
| Wheel bolt bore Ø (mm) | 14.8 |
| Bolt hole circle Ø (mm) | 120 |
| Inner diameter (mm) | 160.8 |
| Outer diameter (mm) | 294 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 74.6 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| bmw | 34216754137 |
| bmw | 34216766219 |
| bmw | 34216794303 |
| bmw | 6754137 |
| bmw | 6766219 |
| bmw | 6794303 |
| Usage numbers |
| A.B.S. 09986980 |
| A.B.S. 09986981 |
| A.B.S. 17802 |
| A.B.S. 17802OE |
| A.Z. Meisterteile AZMT440241174 |
| AKEBONO BN0144 |
| AKEBONO BN0144E |
| ALANKO 10304953 |
| APEC DSK2478 |
| ATE 24011901121 |
| ATE 419112 |
| ATE-APAC 24011901121 |
| AUGROS 5290384P |
| BENDIX 521560 |
| BENDIX Braking BDS2013 |
| BLUE PRINT ADB114352 |
| BORG & BECK BBD4619 |
| BOSCH 0986479670 |
| Brake ENGINEERING DI956717 |
| BRAXIS AD1055 |
| BRECO BS8561 |
| BRECO BV8561 |
| BREMBO 09986980 |
| BREMBO 09986981 |
| BREMBO 09986984 |
| BREMSI CD7285V |
| CAR 1421194 |
| CAR HPD1194 |
| CIFAM 800950C |
| COMLINE ADC1759V |
| DBA Australia DBA3143E |
| DBA Australia DBA3143S |
| DELPHI BG3947 |
| DON PCD21542 |
| DYNAMATRIX DBD1285 |
| E.T.F. 190144 |
| EBC Brakes GD7196 |
| EBC Brakes USR7196 |
| EUROBRAKE 5815201541 |
| EUROBRAKE 5815311541 |
| EUROREPAR 1684328780 |
| FEBI BILSTEIN 28165 |
| FERODO DDF1285 |
| FERODO DDF12851 |
| FERODO DDF1285C |
| FREMAX BD6087 |
| FTE BS7225HB |
| GIRLING 6060332 |
| HELLA 8DD355112651 |
| HELLA 8DD355112661 |
| HELLA 8DD355112662 |
| HELLA 8DD355128511 |
| HELLA PAGID 355112651 |
| HELLA PAGID 355112661 |
| HELLA PAGID 355112662 |
| HELLA PAGID 355128511 |
| HELLA PAGID 8DD355112651 |
| HELLA PAGID 8DD355112661 |
| HELLA PAGID 8DD355112662 |
| HELLA PAGID 8DD355128511 |
| ICER 78BD60872 |
| JURID 563096J1 |
| JURID 563096JC |
| KAWE 6114510 |
| KEY PARTS KBD4184 |
| METELLI 230950C |
| MEYLE 3155230028PD |
| MINTEX MDC1815 |
| MOTAQUIP LVBD1606 |
| National NBD1459 |
| NK 341541 |
| OPTIMAL BS6080 |
| OPTIMAL BS8090 |
| OPTIMAL BS8090C |
| PAGID 54461 |
| PAGID 54461PRO |
| QUINTON HAZELL BDC5818 |
| R BRAKE 78RBD26087 |
| REMSA 6114510 |
| RIDEX 82B0602 |
| ROADHOUSE 6114510 |
| sbs 1815201541 |
| sbs 1815311541 |
| sbs 1815341541 |
| STELLOX 60201541VKSX |
| SWAG 20928165 |
| TEXTAR 92146100 |
| TEXTAR 92146105 |
| TEXTAR 98200146101 |
| TRUCKTEC AUTOMOTIVE 0834051 |
| TRUSTING DF1611 |
| TRW DF4296 |
| TRW DF6033 |
| TRW DF6033S |
| VAICO V2080067 |
| WOKING D6114510 |
| ZIMMERMANN 150343600 |
| ZIMMERMANN 150343620 |
| ZIMMERMANN 150343670 |
| ZIMMERMANN 150343672 |
| ZIMMERMANN 150343675 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 alpina |
||||||||
 bmw |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
