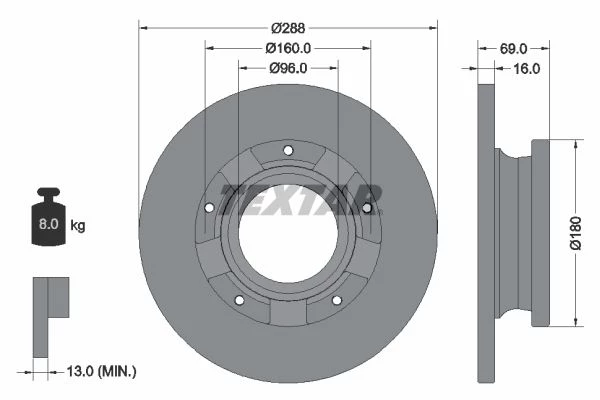

| Hole pitch/number | 05/05 |
| Packaging height (cm) | 16 |
| Packaging width (cm) | 30.8 |
| Packaging length (cm) | 30.8 |
| Weight (kg) | 8 |
| Brake disc type | solid |
| Min. thickness (mm) | 13 |
| Centering diameter (mm) | 96 |
| Surface | coated |
| Brake disc thickness (mm) | 16 |
| Number of teeth, abs ring | 48 |
| Wheel bolt bore Ø (mm) | 10 |
| Bolt hole circle Ø (mm) | 160 |
| Inner diameter (mm) | 1 |
| Outer diameter (mm) | 288 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 69 |
| Fitting position | Rear |
| Manufacturer | Productnumber |
| ford | 2013002 |
| ford | 2021562 |
| ford | 2698855 |
| ford | BK212A097FA |
| ford | BK212A097HA |
| Usage numbers |
| BENDIX BDS2235 |
| BENDIX Braking BDS2235 |
| BLUE PRINT ADF124349 |
| BOSCH 0986479H68 |
| BREMBO 08D5052G |
| COMLINE ADC3036 |
| DBA Australia DBA3115E |
| DELPHI BG4784C |
| DON PCD20112 |
| EUROBRAKE 58153125125 |
| FERODO DDF2472 |
| HELLA 8DD355133071 |
| HELLA PAGID 355133071 |
| HELLA PAGID 8DD355133071 |
| ICER 78BD56441 |
| JAPANPARTS DP0312C |
| JP GROUP 1563202800 |
| JURID 563126J |
| MINTEX MDC2949C |
| NK 3125125 |
| PAGID 56169 |
| PAGID 56169NC |
| PAGID 56169PRO |
| TEXTAR 98200316901 |
| TRW DF6510S |
| VALEO 673058 |
| ZIMMERMANN 250570420 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 ford |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
