| Hole pitch/number | 05/10 |
| Packaging height (cm) | 12.7 |
| Packaging width (cm) | 30.8 |
| Packaging length (cm) | 30.8 |
| Weight (kg) | 6.8 |

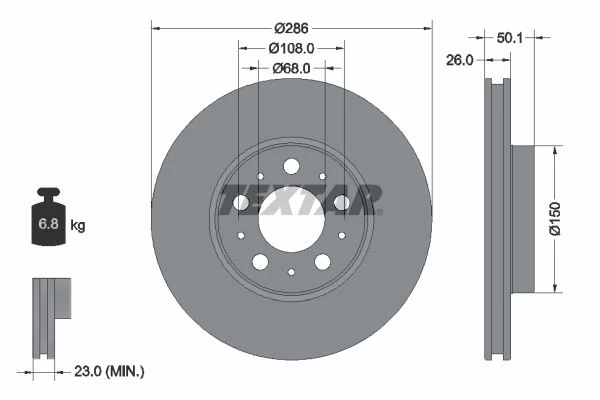

| Brake disc type | externally vented |
| Min. thickness (mm) | 23 |
| Centering diameter (mm) | 68 |
| Surface | coated |
| Brake disc thickness (mm) | 26 |
| Wheel bolt bore Ø (mm) | 16.5 |
| Bolt hole circle Ø (mm) | 108 |
| Inner diameter (mm) | 139 |
| Outer diameter (mm) | 286 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 50.1 |
| Fitting position | Front |
| Usage numbers |
| A.B.S. 09863311 |
| A.B.S. 17404 |
| A.B.S. 17404OE |
| A.Z. Meisterteile AZMT440241096 |
| AKEBONO BN0326 |
| AKEBONO BN0326E |
| AKRON-MALÒ 1110065 |
| ALANKO 10304858 |
| APEC DK6182 |
| APEC DSK2051 |
| APEC SDK6182 |
| ASHIKA 60000350 |
| ASHUKI by Palidium P330057 |
| ATE 24012601221 |
| ATE 426122 |
| ATE-APAC 24012601221 |
| AUGROS 5972538P |
| BARUM BAR26122 |
| BENDIX 520953 |
| BENDIX 562244B |
| BENDIX 562244BC |
| BENDIX Braking BDS1312 |
| BLUE PRINT ADF124361 |
| BORG & BECK BBD4179 |
| BOSCH 0986479210 |
| Brake ENGINEERING DI956025 |
| BRAXIS AE0250 |
| BRECK BR388VA100 |
| BRECO BS8421 |
| BRECO BV8421 |
| BREMBO 09863310 |
| BREMBO 09863311 |
| BREMBO 09863314 |
| BREMBO 0986331X |
| BREMBO 09863375 |
| BREMBO 9863311 |
| BREMSEN AXBD1162 |
| BREMSI CD7163V |
| CAR 142051 |
| CAR HPD051 |
| CHAMPION 562244CH |
| CIFAM 800560C |
| COMLINE ADC1907V |
| COMLINE AND6211 |
| DBA Australia DBA2382 |
| DBA Australia DBA2382S |
| DELPHI BG3513 |
| DELPHI BG3513C |
| DENCKERMANN B130395 |
| DON PCD11982 |
| Dr!ve+ DP1010110334 |
| DYNAMATRIX DBD1163 |
| E.T.F. 194046 |
| EBC Brakes D1010 |
| EBC Brakes GD1010 |
| EBC Brakes USR1010 |
| EUROBRAKE 5815204841 |
| EUROBRAKE 5815314841 |
| EUROREPAR 1642754780 |
| EUROREPAR 1684313280 |
| FEBI BILSTEIN 18044 |
| FERODO DDF1163 |
| FERODO DDF11631 |
| FERODO DDF1163C |
| FERODO DDF1163X |
| FREMAX BD4046 |
| FTE 9072268 |
| FTE 9082213 |
| FTE BS5226 |
| FTE BS5226B |
| GALFER B1G22601221 |
| GIRLING 6042381 |
| HELLA 8DD355107041 |
| HELLA 8DD355107051 |
| HELLA 8DD355107052 |
| HELLA PAGID 355107041 |
| HELLA PAGID 355107051 |
| HELLA PAGID 355107052 |
| HELLA PAGID 8DD355107041 |
| HELLA PAGID 8DD355107051 |
| HELLA PAGID 8DD355107052 |
| Hi-Q SD4674 |
| ICER 78BD40462 |
| JAPANPARTS DI0350 |
| JAPANPARTS DI0350C |
| JURATEK VOL127 |
| JURID 562244JC |
| JURID 562244JC1 |
| KAWE 661910 |
| KEY PARTS KBD4179 |
| LPR V1484V |
| LPR V1484VR |
| MAPCO 15999C |
| METELLI 230560C |
| METZGER 6110561 |
| MEYLE 5155215023 |
| MGA D1454 |
| MINTEX MDC1432 |
| MINTEX MDC1432C |
| MOTAQUIP LVBE263Z |
| NAPA PBD8004 |
| NK 204841 |
| NK 314841 |
| OBTEC A/S 815383820V |
| OPTIMAL BS6330 |
| OPTIMAL BS6330C |
| OPTIMAL BS6330HC |
| OPTIMAL BS7430 |
| PAGID 50282 |
| PAGID 50282NC |
| PAGID 50282PRO |
| PAGID T1189N50282N00 |
| QUINTON HAZELL BDC5226 |
| R BRAKE 78RBD24046 |
| REMSA 661910 |
| RIDEX 82B0136 |
| ROADHOUSE 661910 |
| sbs 1815204841 |
| sbs 1815314841 |
| STELLOX 60204841VKSX |
| STELLOX 60204841VSX |
| SWAG 55918044 |
| TEXTAR 92100500 |
| TEXTAR 98200100501 |
| TRUSTING DF804 |
| TRW DF4238 |
| TRW DF7643 |
| UBD UBD4714 |
| VAICO V9580004 |
| VALEO 186789 |
| VALEO 673077 |
| WAGNER WGR11631 |
| WOKING D661910 |
| ZIMMERMANN 610370100 |
| ZIMMERMANN 610370120 |
| ZIMMERMANN 610370152 |
| ZIMMERMANN 610370170 |
| ZIMMERMANN 610370172 |
| ZIMMERMANN 610370175 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 volvo |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
