Search by registration number
VIN number / Chasis number
| Hole pitch/number | 05/06 |
| Packaging height (cm) | 7.5 |
| Packaging width (cm) | 34.3 |
| Packaging length (cm) | 34.3 |
| Weight (kg) | 9.7 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 27.4 |
| Centering diameter (mm) | 67 |
| Surface | coated |
| Brake disc thickness (mm) | 30 |
| Machining | high-carbon |
| Wheel bolt bore Ø (mm) | 15.3 |
| Bolt hole circle Ø (mm) | 112 |
| Inner diameter (mm) | 154.8 |
| Outer diameter (mm) | 330 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 51.1 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| mercedes-benz | 2474211912 |
| mercedes-benz | 247421191207 |
| mercedes-benz | A2474211912 |
| mercedes-benz | A247421191207 |
| mercedes-benz (bbdc) | 247421191207 |
| mercedes-benz (bbdc) | A247421191207 |
| Usage numbers |
| A.B.S. 09D77011 |
| A.B.S. 18851 |
| APEC DSK3436 |
| ATE 24013002621 |
| ATE-APAC 24013002621 |
| BENDIX Braking BDS1927HC |
| BLUE PRINT ADU1743118 |
| BORG & BECK BBD6250S |
| BOSCH 0986479H34 |
| BRECO BV9466 |
| BREMBO 09D77011 |
| BREMBO 09D7701X |
| BREMSI CD9109V |
| CAR 1422043 |
| COMLINE ADC5225V |
| COMLINE AND7510 |
| DBA Australia DBA3686E |
| DBA Australia DBA3686S |
| DELPHI BG9402C |
| DON PCD20541 |
| EUROBRAKE 58153433181 |
| FEBI BILSTEIN 107515 |
| FERODO DDF3109C1 |
| FREMAX BD0158 |
| HELLA 8DD355133361 |
| HELLA PAGID 355133361 |
| HELLA PAGID 8DD355133361 |
| JP GROUP 1363109400 |
| JURATEK MER382 |
| JURID 563754JC1 |
| KAVO PARTS BR10071C |
| MAGNETI MARELLI 360406174901 |
| MAGNETI MARELLI 360406178902 |
| MINTEX MDC2978C |
| MINTEX MDC82978C |
| National NBD2322 |
| NK 3433181 |
| OPTIMAL BS9950HC |
| PAGID 56233HC |
| PAGID 56233NHC |
| PAGID T2799N56233N00 |
| PAGID T2800N56233N00 |
| SWAG 33105061 |
| TEXTAR 2298801323300 |
| TEXTAR 98200323301 |
| TRW DF8714S |
| ZIMMERMANN 400554220 |
| ZIMMERMANN 400554252 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mercedes-benz |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

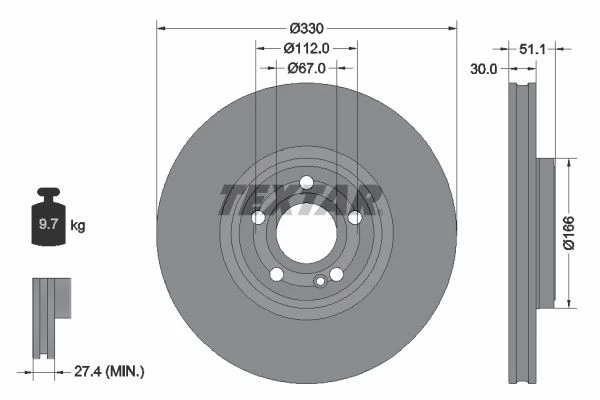

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
