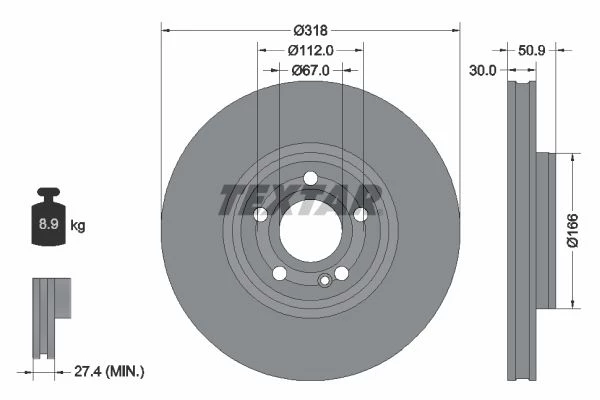

| Hole pitch/number | 05/06 |
| Packaging height (cm) | 12.5 |
| Packaging width (cm) | 32.8 |
| Packaging length (cm) | 32.8 |
| Weight (kg) | 8.9 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 27.4 |
| Centering diameter (mm) | 67 |
| Surface | coated |
| Brake disc thickness (mm) | 30 |
| Machining | high-carbon |
| Wheel bolt bore Ø (mm) | 15.3 |
| Bolt hole circle Ø (mm) | 112 |
| Inner diameter (mm) | 154.6 |
| Outer diameter (mm) | 318 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 50.9 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| mercedes-benz | 2474210712 |
| mercedes-benz | 247421071207 |
| mercedes-benz | A2474210712 |
| mercedes-benz | A247421071207 |
| Usage numbers |
| A.B.S. 09D98511 |
| A.B.S. 18860 |
| APEC DSK3623 |
| ATE 24013002571 |
| BENDIX Braking BDS2193HC |
| BLUE PRINT ADBP430179 |
| BORG & BECK BBD5640 |
| BRECO BV9498 |
| BREMBO 09D98511 |
| CAR 1422041 |
| DBA Australia DBA3784E |
| DELPHI BG5112C |
| DON PCD20092 |
| EUROBRAKE 58153133161 |
| FEBI BILSTEIN 186182 |
| FERODO DDF3136C1D |
| FREMAX BD0217 |
| HELLA 8DD355133051 |
| HELLA PAGID 355133051 |
| HELLA PAGID 8DD355133051 |
| ICER 78BD02172 |
| JP GROUP 1363109800 |
| METZGER 6110973 |
| MINTEX MDC2947C |
| MINTEX MDC82947C |
| NK 3133161 |
| OPTIMAL BS9834HC |
| PAGID 56167HC |
| PAGID 56167NHC |
| PAGID T2819N56167N00 |
| SWAG 33110293 |
| TEXTAR 98200316701 |
| TRW DF8689S |
| ZIMMERMANN 400555120 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mercedes-benz |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
