Search by registration number
VIN number / Chasis number
| Hole pitch/number | 05/06 |
| Packaging height (cm) | 11.5 |
| Packaging width (cm) | 34.3 |
| Packaging length (cm) | 34.3 |
| Weight (kg) | 9.2 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 23 |
| Centering diameter (mm) | 68 |
| Surface | coated |
| Brake disc thickness (mm) | 25 |
| Wheel bolt bore Ø (mm) | 13.3 |
| Bolt hole circle Ø (mm) | 114.3 |
| Inner diameter (mm) | 143 |
| Outer diameter (mm) | 326 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 46.5 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| mazda | DN4J33251 |
| Usage numbers |
| A.B.S. 19000 |
| APEC DSK3775 |
| BENDIX Braking BDS2289 |
| BLUE PRINT ADBP430234 |
| BORG & BECK BBD6283S |
| BOSCH 0986479J27 |
| COMLINE ADC5340V |
| DBA Australia DBA3606E |
| DELPHI BG9605C |
| DON PCD22412 |
| EUROBRAKE 5815313298 |
| FEBI BILSTEIN 196888 |
| HELLA 8DD355134771 |
| HELLA PAGID 355134771 |
| HELLA PAGID 8DD355134771 |
| KAVO PARTS BR10087C |
| MINTEX MDC3044C |
| MOTAQUIP LVBD2377 |
| NIPPARTS N3303081 |
| NISSHINBO ND5046K |
| NK 313298 |
| OPTIMAL BS1092C |
| PAGID 56376 |
| PAGID 56376NC |
| PAGID T2945N56376N00 |
| SWAG 33112371 |
| TEXTAR 98200337601 |
| ZIMMERMANN 370441020 |
| ZIMMERMANN 370441052 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mazda |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

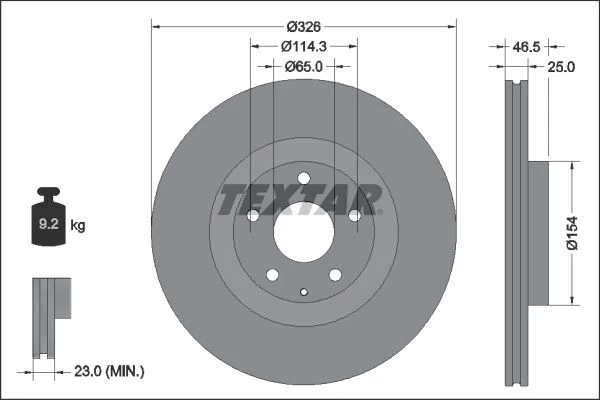

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
