| Hole pitch/number | 05/07 |
| Packaging height (cm) | 7.5 |
| Packaging width (cm) | 32.8 |
| Packaging length (cm) | 32.8 |
| Weight (kg) | 10.2 |

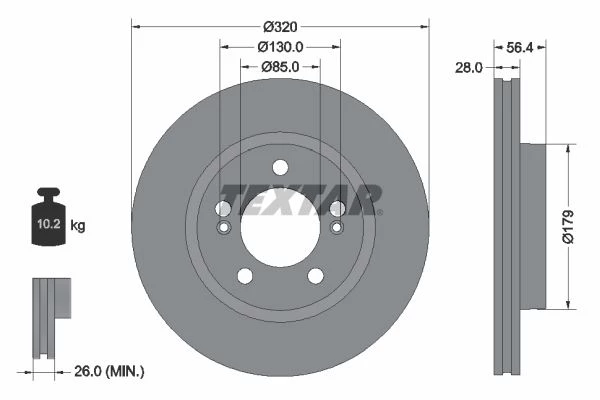

| Brake disc type | internally vented |
| Min. thickness (mm) | 26 |
| Centering diameter (mm) | 85 |
| Surface | coated |
| Brake disc thickness (mm) | 28 |
| Wheel bolt bore Ø (mm) | 17.3 |
| Bolt hole circle Ø (mm) | 130 |
| Inner diameter (mm) | 164 |
| Outer diameter (mm) | 320 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 56.4 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| ssangyong | 4144136000 |
| ssangyong | 4144136001 |
| Usage numbers |
| A.B.S. 18775 |
| A.Z. Meisterteile AZMT440242579 |
| APEC DSK3677 |
| BENDIX Braking BDS2265 |
| BLUE PRINT ADG043250 |
| BORG & BECK BBD6230S |
| BRECO BV9503 |
| BREMBO 09D86311 |
| DBA Australia DBA3154E |
| DBA Australia DBA3154S |
| DELPHI BG9367C |
| DON PCD22111 |
| HELLA 8DD355134321 |
| HELLA PAGID 355134321 |
| HELLA PAGID 8DD355134321 |
| KAVO PARTS BR7717C |
| MAGNETI MARELLI 360406174701 |
| MINTEX MDC3017C |
| NIPPARTS N3300403 |
| NISSHINBO ND6122K |
| OPTIMAL BS9574HC |
| PAGID 56328 |
| PAGID 56328NC |
| PAGID T1602N56328N00 |
| TEXTAR 98200332801 |
| TRW DF6924S |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 ssangyong |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
