| Height (mm) | 47 |
| Supplementary article/supplementary info 2 |
|
| Outer diameter (mm) | 258 |
| Inner diameter (mm) | 125 |
| Bolt hole circle Ø (mm) | 100 |
| Wheel bolt bore Ø (mm) | 13 |
| Brake disc thickness (mm) | 24 |
| Centering diameter (mm) | 55 |
| Min. thickness (mm) | 22 |
| Brake disc type | internally vented |
| Weight (kg) | 5.6 |
| Packaging length (cm) | 27.8 |
| Packaging width (cm) | 27.8 |
| Packaging height (cm) | 12.2 |
| Hole pitch/number | 04/05 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| mazda | B27Y3325XL1 |
| mazda | BJ1Y3325X |
| haima (faw) | B27Y3325XL1 |
| Usage numbers |
| A.B.S. 09782610 |
| A.B.S. 17091 |
| A.B.S. 17091OE |
| A.Z. Meisterteile AZMT440241054 |
| ABE C33016ABE |
| AKEBONO BN0454 |
| AKEBONO BN0454E |
| ALANKO 10305546 |
| APEC DSK827 |
| ASHIKA 6003320 |
| ASHUKI by Palidium M60812 |
| ATE 24012401641 |
| ATE 424164 |
| AUGROS 5972552P |
| BARUM BAR24164 |
| BENDIX 520765 |
| BENDIX 562565BC |
| BENDIX Braking BDS2014 |
| BLUE PRINT ADM54358 |
| BLUE PRINT ADM54358C |
| BORG & BECK BBD4227 |
| BOSCH 0986478989 |
| BOSCH 0986479S56 |
| BOSCH 0986AB6842 |
| BOSCH F005X14041 |
| BOSCH F026A01241 |
| Brake ENGINEERING DI955997 |
| BRAXIS AE0498 |
| BRECO BS8357 |
| BREMBO 09782610 |
| BREMBO 09782611 |
| BREMBO 09782614 |
| BREMBO 9782610 |
| BREMSI CD7105V |
| CAR 142852 |
| CIFAM 800619 |
| COMLINE ADC0437V |
| COMLINE AND6862 |
| DBA Australia DBA537 |
| DBA Australia DBA950 |
| DBA Australia DBA950S |
| DBA Australia DBA950X |
| DELPHI BG3509 |
| DON PCD14222 |
| Dr!ve+ DP1010111258 |
| DYNAMATRIX DBD1105 |
| E.T.F. 193266 |
| EBC Brakes D1125 |
| EUROBRAKE 5815203235 |
| EUROBRAKE 5815313235 |
| EUROREPAR 1642757480 |
| EUROREPAR 1671245680 |
| EUROREPAR 1684268580 |
| FEBI BILSTEIN 23441 |
| FERODO DDF1105 |
| FERODO DDF11051 |
| FERODO DDF1105C |
| FOMAR Friction FO2538 |
| FREMAX BD3266 |
| FTE 9072330 |
| FTE 9082228 |
| FTE BS5149 |
| FTE BS5149B |
| GIRLING 6041191 |
| HELLA 8DD355107201 |
| HELLA 8DD355130702 |
| HELLA PAGID 355107201 |
| HELLA PAGID 355130702 |
| HELLA PAGID 8DD355107201 |
| HELLA PAGID 8DD355130702 |
| HERTH+BUSS JAKOPARTS J3303069 |
| Hi-Q SD4416 |
| ICER 78BD32662 |
| JAPANPARTS DI320 |
| JAPANPARTS DI320C |
| JURATEK MAZ119 |
| JURID 562565J1 |
| JURID 562565JC |
| KAVO PARTS BR4749 |
| KAVO PARTS BR4749C |
| KAWE 681210 |
| LPR M5840V |
| MAPCO 15529C |
| METELLI 230619 |
| METZGER 6110373 |
| MEYLE 35155210024 |
| MGA D1382 |
| MINTEX MDC1401 |
| MOTAQUIP LVBE320Z |
| NIPPARTS J3303069 |
| NISSHINBO ND5021 |
| NK 203235 |
| NK 313235 |
| OPTIMAL BS7340 |
| OPTIMAL BS7340C |
| OPTIMAL BS7778 |
| PAGID 50296 |
| PEX 140297 |
| QUINTON HAZELL BDC5149 |
| R BRAKE 78RBD23266 |
| REMSA 681210 |
| RIDEX 82B0073 |
| ROADHOUSE 681210 |
| sbs 1815203235 |
| sbs 1815313235 |
| STELLOX 60203235VKSX |
| SWAG 83923441 |
| TEXTAR 92103103 |
| TEXTAR 98200103101 |
| TRUSTING DF512 |
| TRW DF4119 |
| VAICO V3280004 |
| VALEO 186810 |
| WOKING D681210 |
| ZIMMERMANN 370307100 |
| ZIMMERMANN 370307120 |
| ZIMMERMANN 370307152 |
| ZIMMERMANN 370307170 |
| ZIMMERMANN 370307172 |
| ZIMMERMANN 370307175 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mazda |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

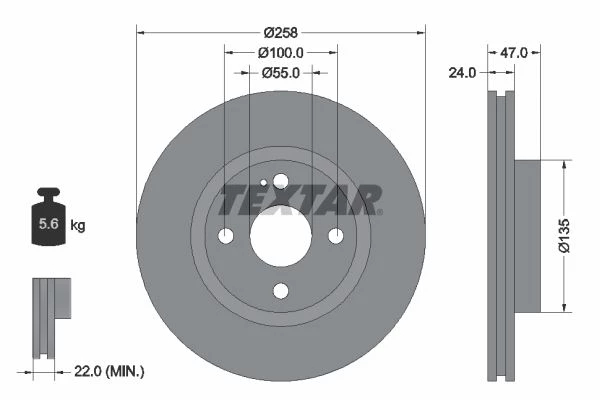

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
