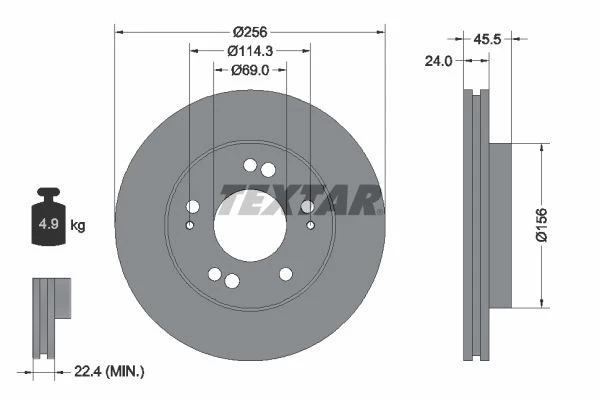

| Height (mm) | 45.5 |
| Supplementary article/supplementary info 2 |
|
| Outer diameter (mm) | 256 |
| Inner diameter (mm) | 145.2 |
| Bolt hole circle Ø (mm) | 114.3 |
| Wheel bolt bore Ø (mm) | 12.6 |
| Brake disc thickness (mm) | 24 |
| Centering diameter (mm) | 69 |
| Min. thickness (mm) | 22.4 |
| Brake disc type | internally vented |
| Weight (kg) | 4.9 |
| Packaging length (cm) | 27.8 |
| Packaging width (cm) | 27.8 |
| Packaging height (cm) | 12.2 |
| Hole pitch/number | 05/09 |
| Fitting position | Front |
| Usage numbers |
| A.B.S. 09564020 |
| A.B.S. 16864 |
| A.Z. Meisterteile AZMT440242100 |
| ABE C35031ABE |
| AKEBONO BN1170 |
| AKEBONO BN1170E |
| ALANKO 10304536 |
| ALANKO 10305604 |
| ALANKO 10305730 |
| ASHIKA 6005531 |
| ASHIKA 6005598 |
| ATE 24012401421 |
| ATE 424142 |
| AUGROS 5298278P |
| BENDIX 561851B |
| BOSCH 0986478708 |
| BOSCH 0986AB5440 |
| BOSCH BD622 |
| BOSCH F026A00887 |
| BRAXIS AE0748 |
| BRECO BS8079 |
| BREMBO 09564020 |
| BREMBO 09564021 |
| BREMBO 09564024 |
| BREMBO 9564020 |
| BREMSI CD6824V |
| COMLINE ADC0348V |
| COMLINE ADC0366V |
| COMLINE ADC0367V |
| DBA Australia DBA421 |
| DBA Australia DBA421S |
| DELPHI BG2819 |
| DON PCD15162 |
| DYNAMATRIX DBD824 |
| E.T.F. 198108 |
| EUROBRAKE 5815203038 |
| FERODO DDF824 |
| FERODO DDF8241 |
| FOMAR Friction FO2495 |
| FOMAR Friction FO2496 |
| FREMAX BD8110 |
| FTE 9072775 |
| FTE BS7458 |
| HELLA 8DD355103311 |
| HELLA 8DD355130462 |
| HELLA PAGID 355103311 |
| HELLA PAGID 355130462 |
| HELLA PAGID 8DD355103311 |
| HELLA PAGID 8DD355130462 |
| HERTH+BUSS JAKOPARTS J3305031 |
| ICER 78BD81102 |
| JAPANPARTS DI531 |
| JAPANPARTS DI598C |
| JAPCAR 242695 |
| JURID 561851J |
| KAVO PARTS BR5735 |
| KAVO PARTS BR5735C |
| KAWE 6122010 |
| MAPCO 15252C |
| MINTEX MDC1424 |
| MINTEX MDC1468 |
| NIPPARTS J3305031 |
| NIPPARTS J3305056 |
| NISSHINBO ND3010 |
| NISSHINBO ND3010K |
| NK 203038 |
| NK 313038 |
| OPTIMAL BS6800 |
| OPTIMAL BS6800C |
| PAGID 52213 |
| R BRAKE 78RBD28110 |
| REMSA 6122010 |
| RIDEX 82B0827 |
| ROADHOUSE 6122010 |
| sbs 1815203038 |
| STELLOX 60203038VSX |
| TEXTAR 2164701063000 |
| TEXTAR 2358401063000 |
| TEXTAR 98200063001 |
| TRW DF1434 |
| TRW DF1434S |
| TRW DF7106 |
| VAICO V3340031 |
| VALEO 186475 |
| WOKING D6122010 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mitsubishi |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
