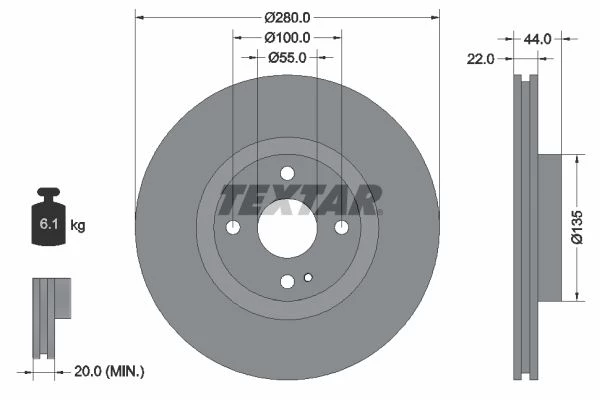

Hole pitch/number	04/05
Packaging height (cm)	10.5
Packaging width (cm)	29.3
Packaging length (cm)	29.3
Weight (kg)	6.1
Brake disc type	internally vented
Min. thickness (mm)	20
Centering diameter (mm)	55
Surface	coated
Brake disc thickness (mm)	22
Wheel bolt bore Ø (mm)	13
Bolt hole circle Ø (mm)	100
Inner diameter (mm)	125
Outer diameter (mm)	280
Supplementary article/supplementary info 2	without wheel studs without wheel hub without wheel bearing
Height (mm)	44
Fitting position	Front

Product number: 92301503

2x Textar Front Vented Brake Discs Pair For Abarth Fiat Mazda 124 Mx-5 Mx-5 Rf

Out of stock

Price incl. vat.

£ 81,06

Notify me when back in stock

⚠️ Sold As a Pair Check Measurements of old brake discs before ordering.

Description

Manufacturer	Productnumber
fiat	6000612391
mazda	N25133251

Usage numbers
A.B.S. 09C39121
A.B.S. 18490
A.Z. Meisterteile AZMT440242527
APEC DSK3245
ATE 24012203001
BENDIX Braking BDS2185
BLUE PRINT ADM543135
BORG & BECK BBD5508
BRECO BV8038
BREMBO 09D30711
CAR 1422124
COMLINE ADC2979V
COMLINE AND7161
DBA Australia DBA2964E
DBA Australia DBA2964S
DBA Australia DBA42964
DBA Australia DBA42964S
DELPHI BG5010C
DON PCD17662
EBC Brakes D2033
EBC Brakes GD2033
EUROBRAKE 5815319963
FEBI BILSTEIN 170731
HELLA 8DD355131921
HELLA PAGID 355131921
HELLA PAGID 8DD355131921
HERTH+BUSS JAKOPARTS J3303096
JAPANPARTS DI370C
JAPKO 60370C
JURID 563443JC1
KAVO PARTS BR4806C
METZGER 6110834
MEYLE 35155210046PD
MINTEX MDC2859C
MOTAQUIP LVBD1954
NIPPARTS N3303084
NIPPARTS N3303102
NISSHINBO ND5038K
NK 319963
OPTIMAL BS9730C
OPTIMAL BS9876C
PAGID 56015
PAGID 56015NC
SWAG 33105293
TEXTAR 98200301501
ZIMMERMANN 370440020
ZIMMERMANN 370440052

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
abarth
fiat
mazda

FAQ

All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.

Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.

On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.

All our brake discs are brand new and meet or exceed OEM standards.
