Search by registration number
VIN number / Chasis number
| Number of bolts/screws | 1 |
| Hole pitch/number | 05/06 |
| Packaging height (cm) | 10.5 |
| Packaging width (cm) | 35.8 |
| Packaging length (cm) | 35.8 |
| Weight (kg) | 9.8 |
| Brake disc type |
|
| Min. thickness (mm) | 24.4 |
| Centering diameter (mm) | 79 |
| Surface | coated |
| Brake disc thickness (mm) | 25.9 |
| Machining | high-carbon |
| Wheel bolt bore Ø (mm) | 14.5 |
| Bolt hole circle Ø (mm) | 120 |
| Inner diameter (mm) | 171.5 |
| Outer diameter (mm) | 338 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 73 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| bmw | 34116786392 |
| bmw | 6786392 |
| Usage numbers |
| A.B.S. 09C42013 |
| A.B.S. 18593 |
| ASHIKA 60000144 |
| BENDIX 521788 |
| BOSCH 0986479E09 |
| BOSCH 0986479U64 |
| BRECO BZ9297 |
| BREMBO 09C42013 |
| CAR 2421935 |
| COMLINE ADC2816V |
| COMLINE AND6993 |
| DBA Australia DBA2883E |
| DBA Australia DBA2883S |
| DBA Australia DBA2883X |
| DELPHI BG9235C |
| EBC Brakes D1684 |
| EBC Brakes D1684R |
| EBC Brakes GD1684RD |
| EBC Brakes USR1684 |
| EBC Brakes USR1684R |
| FERODO DDF1811C1 |
| FERODO DDF2618VC1 |
| HELLA 8DD355123041 |
| HELLA 8DD355123051 |
| HELLA PAGID 355123041 |
| HELLA PAGID 355123051 |
| HELLA PAGID 8DD355123041 |
| HELLA PAGID 8DD355123051 |
| JAPANPARTS DI0144 |
| JAPANPARTS DI0144C |
| JURID 563203JVC1 |
| LPR B2553VBR |
| MINTEX MDCB2597 |
| NK 3415121 |
| OPTIMAL BS9338 |
| OPTIMAL BS9338HC |
| PAGID 65156 |
| PILENGA V1414 |
| sbs 18153415121 |
| TEXTAR 98200266901 |
| VAICO V2080099 |
| ZIMMERMANN 150293520 |
| ZIMMERMANN 150293532 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 bmw |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

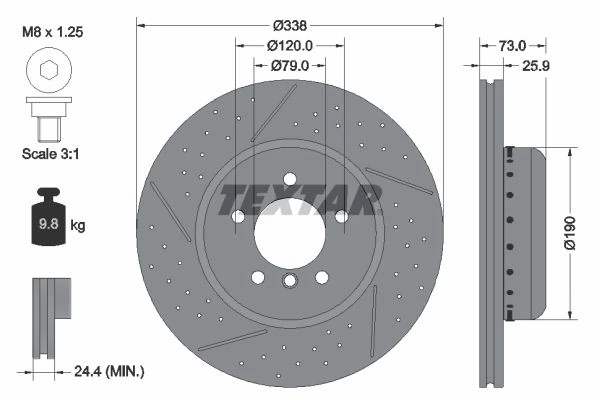

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
