Search by registration number
VIN number / Chasis number

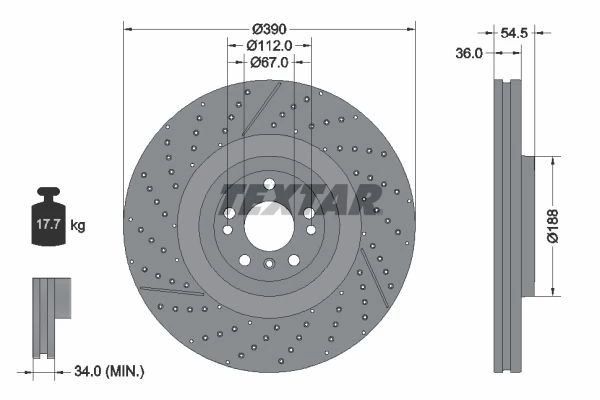

| Hole pitch/number | 05/08 |
| Packaging height (cm) | 9.5 |
| Packaging width (cm) | 39.8 |
| Packaging length (cm) | 39.8 |
| Weight (kg) | 17.7 |
| Brake disc type |
|
| Min. thickness (mm) | 34 |
| Centering diameter (mm) | 67 |
| Surface | coated |
| Brake disc thickness (mm) | 36 |
| Machining | high-carbon |
| Wheel bolt bore Ø (mm) | 15.3 |
| Bolt hole circle Ø (mm) | 112 |
| Inner diameter (mm) | 175 |
| Outer diameter (mm) | 390 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 54.5 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| mercedes-benz | 1664210512 |
| mercedes-benz | A1664210512 |
| Usage numbers |
| A.B.S. 09B80511 |
| A.B.S. 18472 |
| A.Z. Meisterteile AZMT440242475 |
| APEC DSK3239 |
| ATE-APAC 24803601821 |
| BENDIX Braking BDS2285HC |
| BLUE PRINT ADU1743123 |
| BORG & BECK BBD6127S |
| BOSCH 0986479E96 |
| BRECO BV9249 |
| BREMBO 09B80511 |
| BREMBO 59E11587 |
| CAR 1422071 |
| DBA Australia DBA3360EXDS |
| DON PCD22341 |
| EBC Brakes D2143D |
| EUROBRAKE 58153133159 |
| FEBI BILSTEIN 107723 |
| HELLA 8DD355134711 |
| HELLA PAGID 355134711 |
| HELLA PAGID 8DD355134711 |
| MINTEX MDC3038C |
| MINTEX MDC83038C |
| National NBD2311 |
| NK 3133159 |
| OPTIMAL BS9958HC |
| PAGID 56370HC |
| PAGID 56370NHC |
| SWAG 10107723 |
| TEXTAR 98200337001 |
| TOPRAN 409322 |
| TRISCAN 8120231065C |
| ZIMMERMANN 400369820 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 mercedes-benz |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
