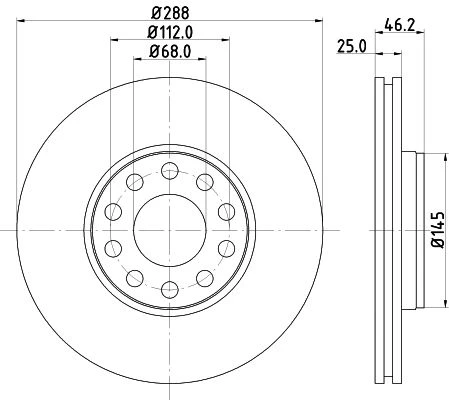

| Height (mm) | 46.2 |
| Supplementary article/supplementary info 2 |
|
| Outer diameter (mm) | 288 |
| Inner diameter (mm) | 136.7 |
| Bolt hole circle Ø (mm) | 112 |
| Wheel bolt bore Ø (mm) | 15.5 |
| Brake disc thickness (mm) | 25 |
| Centering diameter (mm) | 68 |
| Min. thickness (mm) | 23 |
| Brake disc type | externally vented |
| Weight (kg) | 7.6 |
| Packaging length (cm) | 30.8 |
| Packaging width (cm) | 30.8 |
| Packaging height (cm) | 12.7 |
| Hole pitch/number | 05/10 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| audi | 4B0615301B |
| audi | JZW615301B |
| seat | 4B0615301B |
| seat | JZW615301B |
| skoda | 4B0615301B |
| skoda | JZW615301B |
| vw | 4B0615301B |
| vw | JZW615301B |
| vw (svw) | 4B0615301B |
| vw (svw) | JZW615301B |
| Usage numbers |
| A.B.S. 09A42811 |
| A.B.S. 17527 |
| A.B.S. 17527OE |
| ABE C3W040ABE |
| AISIN T6F841S |
| AKRON-MALÒ 1110139 |
| ALANKO 10303925 |
| APEC DSK911 |
| ATE 24012501711 |
| ATE 24032501711 |
| ATE 425171 |
| ATE 525171 |
| ATE-APAC 24012501711 |
| AUGROS 5290185P |
| BARUM BAR25171 |
| BENDIX 521105 |
| BENDIX 561548B |
| BENDIX 561548BC |
| BENDIX Braking BDS1197HC |
| BLUE PRINT ADV184333 |
| BOSCH 0986479157 |
| BOSCH 0986479S19 |
| Brake ENGINEERING DI956802 |
| BRAXIS AE0616 |
| BRECK BR336VA100 |
| BRECO BS8713 |
| BRECO BV8713 |
| BREMBO 09A42810 |
| BREMBO 09A42811 |
| BREMBO 09A42814 |
| CAR 1421188 |
| CAR HPD1188 |
| CHAMPION 561548CH |
| CIFAM 800745C |
| DELPHI BG2745 |
| DENCKERMANN B130440 |
| DON PCD10682 |
| EUROBRAKE 58152047184 |
| EUROREPAR 1642750180 |
| EUROREPAR 1667848480 |
| EUROREPAR 1671256080 |
| EUROREPAR 1686338280 |
| FEBI BILSTEIN 28505 |
| FERODO DDF17061 |
| FERODO DDF1706C |
| FERODO DDF1706C1 |
| FOMAR Friction FO2679 |
| FREMAX BD1068 |
| fri.tech. BD1604 |
| GALFER B1G22501711 |
| HELLA 8DD355109611 |
| HELLA 8DD355109621 |
| HELLA 8DD355109622 |
| HELLA 8DD355128011 |
| HELLA PAGID 355109611 |
| HELLA PAGID 355109621 |
| HELLA PAGID 355109622 |
| HELLA PAGID 355128011 |
| HELLA PAGID 8DD355109611 |
| HELLA PAGID 8DD355109621 |
| HELLA PAGID 8DD355109622 |
| HELLA PAGID 8DD355128011 |
| ICER 78BD10682 |
| JURATEK VAG122 |
| JURID 561548JC |
| KAWE 6122710 |
| KEY PARTS KBD4948 |
| LPR V2004V |
| LPR V2004VR |
| MAPCO 25870 |
| MAPCO 25870C |
| METELLI 230745C |
| METZGER 6110080 |
| MEYLE 1155211120 |
| MEYLE 1835211120PD |
| NAPA PBD8525 |
| NK 2047184 |
| NK 204743 |
| NK 314743 |
| OPTIMAL BS7532 |
| OPTIMAL BS7532C |
| PAGID 54210 |
| PAGID 54210NHC |
| PAGID 54210PRO |
| PAGID T1149N54210N00 |
| PAGID T1388N54210N00 |
| R BRAKE 78RBD21068 |
| REMSA 6122710 |
| REPSTAR VW03101035 |
| RIDEX 82B0651 |
| ROADHOUSE 6122710 |
| sbs 18152047184 |
| STELLOX 60204743VKSX |
| STELLOX 60204743VSX |
| STOP 561548S |
| SWAG 30928505 |
| TEXTAR 92121000 |
| TEXTAR 92121003 |
| TEXTAR 92121005 |
| TEXTAR 98200121001 |
| TOPRAN 110420 |
| TRUSTING DF1604 |
| TRW DF4816 |
| VAICO V1080098 |
| VALEO 197222 |
| VALEO 672902 |
| WAGNER WGR17061 |
| WOKING D6122710 |
| ZIMMERMANN 600323600 |
| ZIMMERMANN 600323620 |
| ZIMMERMANN 600323652 |
| ZIMMERMANN 600323670 |
| ZIMMERMANN 600323672 |
| ZIMMERMANN 600323675 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 skoda |
||||||||
 vw |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
