| Hole pitch/number | 05/06 |
| Packaging height (cm) | 7 |
| Packaging width (cm) | 36.8 |
| Packaging length (cm) | 36.8 |
| Weight (kg) | 12.7 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 30 |
| Centering diameter (mm) | 63.6 |
| Surface | coated |
| Brake disc thickness (mm) | 32 |
| Wheel bolt bore Ø (mm) | 13.8 |
| Bolt hole circle Ø (mm) | 108 |
| Inner diameter (mm) | 158.5 |
| Outer diameter (mm) | 350 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 48.2 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| jaguar | T4N1803 |
| Usage numbers |
| A.B.S. 09D06411 |
| A.B.S. 18560 |
| APEC DSK3184 |
| APEC SDK6990 |
| ATE 24013201931 |
| ATE-APAC 24013201931 |
| BENDIX Braking BDS1604HC |
| BLUE PRINT ADJ134367 |
| BORG & BECK BBD6103S |
| BOSCH 0986479G33 |
| Brake ENGINEERING DI957184 |
| BRECO BV9326 |
| BREMBO 09D06411 |
| COMLINE ADC2931V |
| DBA Australia DBA3096E |
| DELPHI BG9167C |
| DELPHI BG9167C18B1 |
| EBC Brakes D2046 |
| EBC Brakes USR2046 |
| FEBI BILSTEIN 108677 |
| FREMAX BD7372 |
| HELLA 8DD355132471 |
| HELLA PAGID 355132471 |
| HELLA PAGID 8DD355132471 |
| JURATEK JAG115 |
| MOTAQUIP LVBD1880 |
| MOTAQUIP LVBD1884 |
| NAPA PBD8761 |
| OPTIMAL BS9718HC |
| PAGID 56081HC |
| PAGID 56081NHC |
| PAGID T2511N56081N00 |
| PAGID T2511N56081N01 |
| SWAG 15108677 |
| TEXTAR 92308105 |
| TEXTAR 98200308101 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 jaguar |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

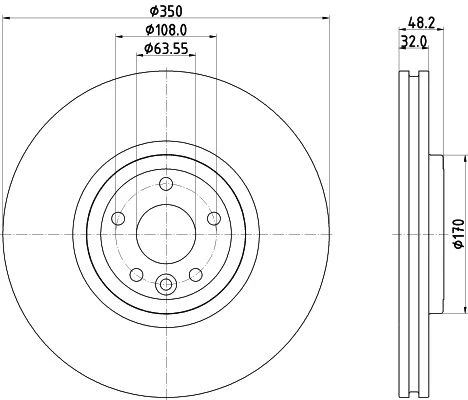

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
