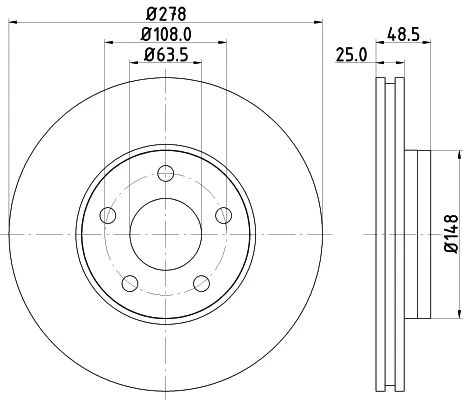

| Hole pitch/number | 05/05 |
| Packaging height (cm) | 12.7 |
| Packaging width (cm) | 30.8 |
| Packaging length (cm) | 30.8 |
| Weight (kg) | 6.5 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 23 |
| Centering diameter (mm) | 63.5 |
| Surface | coated |
| Brake disc thickness (mm) | 25 |
| Wheel bolt bore Ø (mm) | 13.7 |
| Bolt hole circle Ø (mm) | 108 |
| Inner diameter (mm) | 140 |
| Outer diameter (mm) | 278 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 48.5 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| ford | 1686722 |
| ford | 1686723 |
| ford | 1790221 |
| ford | AV611125CA |
| ford | AV611125DA |
| ford | AV611125DB |
| ford usa | BV6Z1125A |
| ford (changan) | 1759454 |
| ford (changan) | 1843728 |
| ford (changan) | BV611125AA |
| ford (changan) | BV611125EA |
| ford (changan) | BV611125EB |
| Usage numbers |
| A.B.S. 09A90511 |
| A.B.S. 17586 |
| A.B.S. 18339 |
| ABE C3G059ABEP |
| AKEBONO BN0146 |
| AKEBONO BN0146E |
| AKRON-MALÒ 1110396 |
| ASHIKA 60000303 |
| ASHUKI by Palidium P330255 |
| ATE 24012501991 |
| ATE 24032501991 |
| BENDIX 522187 |
| BENDIX 562752BC |
| BENDIX Braking BDS1133 |
| BORG & BECK BBD5244 |
| BOSCH 0986479173 |
| Brake ENGINEERING DI956915 |
| BRECK BR462VA100 |
| BRECO BS8871 |
| BRECO BV8871 |
| BREMBO 09A90510 |
| BREMBO 09A90511 |
| BREMBO 09A9051X |
| BREMBO 09A90575 |
| BREMSEN AXBD2890 |
| BREMSI CD8062V |
| CAR 1421741 |
| CHAMPION 562752CH |
| COMLINE ADC1912V |
| DELPHI BG3868 |
| DENCKERMANN B130652 |
| DON PCD11462 |
| Dr!ve+ DP1010111715 |
| EBC Brakes D1960 |
| EBC Brakes GD1960 |
| EBC Brakes USR1960 |
| EUROBRAKE 5815202582 |
| EUROBRAKE 5815312582 |
| EUROREPAR 1642754280 |
| EUROREPAR 1667849080 |
| FEBI BILSTEIN 24565 |
| FERODO DDF12221 |
| FERODO DDF1222C |
| FERODO DDF1222C1 |
| FERODO DDF2062C |
| FERODO DDF2062C1 |
| FTE 9072171 |
| FTE BS7404 |
| FTE BS7404B |
| GALFER B1G22501991 |
| GIRLING 6061383 |
| GIRLING 6062171 |
| HELLA 8DD355117961 |
| HELLA 8DD355129361 |
| HELLA PAGID 355117961 |
| HELLA PAGID 355129361 |
| HELLA PAGID 8DD355117961 |
| HELLA PAGID 8DD355129361 |
| JAPANPARTS DI0303 |
| JAPANPARTS DI0303C |
| JURATEK FOR137 |
| JURID 562752JC |
| JURID 562752JC1 |
| KAWE 6156010 |
| LPR F1028V |
| LPR F1028VR |
| MAGNETI MARELLI 360406176202 |
| MAGNETI MARELLI 360406176305 |
| MAGNETI MARELLI 360406222901 |
| METZGER 6110668 |
| MEYLE 7155210034 |
| MEYLE 7155210034PD |
| MINTEX MDC2342 |
| MOTAQUIP LVBD1081Z |
| MOTAQUIP LVBD1662 |
| NK 202582 |
| NK 312582 |
| OPTIMAL BS9158 |
| OPTIMAL BS9158C |
| PAGID 55377 |
| PAGID 55377NC |
| PAGID 55377PRO |
| PAGID T1436N55377N00 |
| REMSA 6156010 |
| ROADHOUSE 6156010 |
| sbs 1815202582 |
| sbs 1815312582 |
| STELLOX 60204848VKSX |
| TEXTAR 92237703 |
| TEXTAR 98200237701 |
| TRISCAN 8120101128C |
| TRUSTING DF985 |
| TRW DF6138 |
| TRW DF6217 |
| VALEO 197461 |
| VALEO 297461 |
| VALEO 673017 |
| WAGNER WGR12221 |
| WOKING D6156010 |
| ZIMMERMANN 250135220 |
| ZIMMERMANN 250137120 |
| ZIMMERMANN 250137152 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 ford |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
