| Height (mm) | 49.6 |
| Supplementary article/supplementary info 2 |
|
| Outer diameter (mm) | 340 |
| Inner diameter (mm) | 145 |
| Bolt hole circle Ø (mm) | 112 |
| Wheel bolt bore Ø (mm) | 15.3 |
| Brake disc thickness (mm) | 30 |
| Centering diameter (mm) | 65 |
| Min. thickness (mm) | 27 |
| Brake disc type | internally vented |
| Weight (kg) | 10.8 |
| Packaging length (cm) | 35.8 |
| Packaging width (cm) | 35.8 |
| Packaging height (cm) | 8.5 |
| Hole pitch/number | 05/10 |
| Fitting position | Front |
| Manufacturer | Productnumber |
| audi | 1K0615301AD |
| audi | 3C0615301C |
| audi | 3C0615301D |
| audi | 5Q0615301G |
| audi | 5QN615301A |
| audi | 8S0615301 |
| audi | 8S0615301D |
| audi | JZW698302DG |
| cupra | 1K0615301AD |
| cupra | 3C0615301C |
| cupra | 3C0615301D |
| cupra | 5Q0615301G |
| cupra | 5QN615301A |
| cupra | 8S0615301 |
| cupra | 8S0615301D |
| cupra | JZW698302DG |
| seat | 1K0615301AD |
| seat | 3C0615301C |
| seat | 3C0615301D |
| seat | 5Q0615301G |
| seat | 5QN615301A |
| seat | 8S0615301 |
| seat | 8S0615301D |
| seat | JZW698302DG |
| skoda | 1K0615301AD |
| skoda | 3C0615301C |
| skoda | 3C0615301D |
| skoda | 5Q0615301G |
| skoda | 5QN615301A |
| skoda | 8S0615301 |
| skoda | 8S0615301D |
| skoda | JZW698302DG |
| vw | 1K0615301AD |
| vw | 3C0615301C |
| vw | 3C0615301D |
| vw | 5Q0615301G |
| vw | 5QN615301A |
| vw | 8S0615301 |
| vw | 8S0615301D |
| vw | JZW698302DG |
| audi (faw) | 1K0615301AD |
| audi (faw) | 3C0615301C |
| audi (faw) | 3C0615301D |
| audi (faw) | 5Q0615301G |
| audi (faw) | 5QN615301A |
| audi (faw) | 8S0615301 |
| audi (faw) | 8S0615301D |
| audi (faw) | JZW698302DG |
| Usage numbers |
| A.B.S. 09C30611 |
| A.B.S. 18194 |
| A.Z. Meisterteile AZMT440241996 |
| ABE C3W048ABE |
| ABE C3W048ABEP |
| AKEBONO BN0022 |
| AKEBONO BN0022E |
| AKRON-MALÒ 1110720 |
| ALANKO 10303110 |
| APEC DSK2867 |
| APEC DSK2867B |
| APEC SDK6675 |
| ASHIKA 60000907 |
| ATE 24013002251 |
| ATE-APAC 24013002251 |
| BENDIX 521696 |
| BENDIX 562663BC |
| BENDIX BR2830EURO |
| BENDIX BR2830ULT |
| BENDIX Braking BDS1358HC |
| BLUE PRINT ADV184372 |
| BORG & BECK BBD5963S |
| BOSCH 0986479734 |
| BOSCH 0986479C90 |
| Brake ENGINEERING DI956959S |
| BRECK BR441VH100 |
| BRECO BV9109 |
| BREMBO 09C30611 |
| BREMBO 09C3061E |
| BREMBO 09C3061X |
| BREMBO 59E11457 |
| BREMSI CD8000V |
| BREMSI CD9062V |
| CAR 1421612 |
| CAR HPD1612 |
| CIFAM 8001243C |
| COMLINE ADC1498V |
| COMLINE ADC2996V |
| COMLINE AND6838 |
| DBA Australia DBA42830 |
| DBA Australia DBA42830S |
| DBA Australia DBA42830WSLVXD |
| DBA Australia DBA42830WXD |
| DBA Australia DBA42830XD |
| DBA Australia DBA42830XS |
| DELPHI BG9109 |
| DELPHI BG9109C |
| DENCKERMANN B130799 |
| DON PCD12781 |
| DYNAMATRIX DBD2000C |
| E.T.F. 195624 |
| EBC Brakes BSD1877 |
| EBC Brakes D1877 |
| EBC Brakes GD1877 |
| EBC Brakes SG2FC1877 |
| EBC Brakes USR1877 |
| EUROBRAKE 58152047141 |
| EUROBRAKE 58153147141 |
| EUROREPAR 1618886580 |
| EUROREPAR 1686347880 |
| FEBI BILSTEIN 39129 |
| FERODO DDF2000C |
| FERODO DDF2000C1 |
| FERODO DDF2592C1 |
| FERODO DDF3062C1 |
| FREMAX BD6085 |
| fri.tech. BD1456 |
| FTE 9071055 |
| FTE 9081017 |
| FTE BS7706 |
| FTE BS7706B |
| GALFER B1G23002251 |
| GIRLING 6061335 |
| HELLA 8DD355117201 |
| HELLA 8DD355121921 |
| HELLA 8DD355129241 |
| HELLA 8DD355129242 |
| HELLA PAGID 355117201 |
| HELLA PAGID 355121921 |
| HELLA PAGID 355129241 |
| HELLA PAGID 355129242 |
| HELLA PAGID 8DD355117201 |
| HELLA PAGID 8DD355121921 |
| HELLA PAGID 8DD355129241 |
| HELLA PAGID 8DD355129242 |
| HERTH+BUSS JAKOPARTS J3300866 |
| Hi-Q SD5701 |
| ICER 78BD60852 |
| JAPANPARTS DI0907 |
| JAPANPARTS DI0907C |
| JP GROUP 1163114400 |
| JURATEK VAG321 |
| JURID 562663JC |
| JURID 562663JC1 |
| JURID 563171JC1 |
| JURID 563706JC1 |
| KAWE 6148610 |
| LPR V2010V |
| LPR V2010VR |
| MAGNETI MARELLI 360406182301 |
| MAGNETI MARELLI 360406185402 |
| MAPCO 25779 |
| MAPCO 25779C |
| METELLI 231243C |
| METZGER 6110715 |
| MEYLE 1835210008PD |
| MINTEX MDC82253C |
| MOTAQUIP LVBD1628 |
| NAPA PBD8616 |
| NK 2047141 |
| NK 3147141 |
| NK 344714 |
| OPTIMAL BS8712 |
| OPTIMAL BS8712C |
| OPTIMAL BS8712HC |
| PAGID 55298 |
| PAGID 55298NHC |
| PAGID 55298PRO |
| PAGID T2074N55298N00 |
| PAGID T2488N55298N00 |
| PAGID T2732N55298N00 |
| PAGID T4634N55298N01 |
| QUINTON HAZELL BDC6050 |
| R BRAKE 78RBD26085 |
| REMSA 6148610 |
| RIDEX 82B0828 |
| RIDEX 82B2669 |
| ROADHOUSE 6148610 |
| sbs 18152047141 |
| sbs 18153147141 |
| sbs 1815344714 |
| STELLOX 60201745KSX |
| STELLOX 60201745SX |
| SWAG 30939129 |
| TEXTAR 92229803 |
| TEXTAR 92229805 |
| TEXTAR 98200229801 |
| TEXTAR MDC82253C |
| TOMEX Brakes TX7418 |
| TOPRAN 114839 |
| TRUCKTEC AUTOMOTIVE 0735258 |
| TRUSTING DF1456 |
| TRW DF6133S |
| VAICO V1080119 |
| VALEO 197677 |
| VALEO 672769 |
| WOKING D6148510 |
| ZIMMERMANN 600324320 |
| ZIMMERMANN 600324352 |
| ZIMMERMANN 600324354 |
| ZIMMERMANN 600324355 |
| ZIMMERMANN 600326270 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 audi |
||||||||
 cupra |
||||||||
 seat |
||||||||
 skoda |
||||||||
 vw |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs

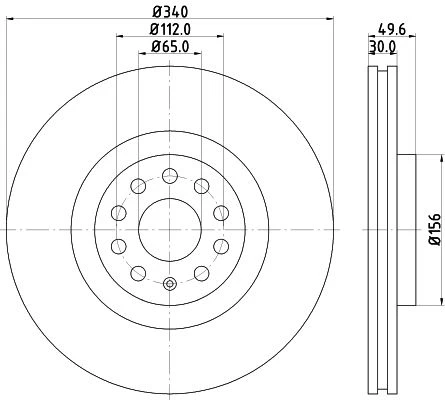

See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
