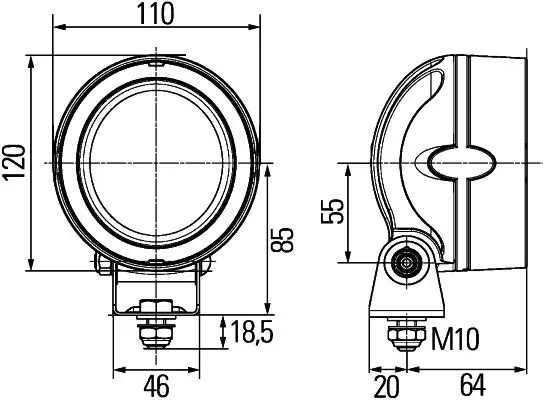

| Height (mm) | 120 |
| Depth (mm) | 84 |
| Light design | led |
| Fulfils ece standard | r10 |
| Housing colour | black/blue |
| Number of leds | 4 |
| Luminous flux (lm) | 800 |
| Light distribution | short-range illumination |
| Colour temperature (K) | 6500 |
| Lens material | glass |
| Lamp type | led |
| Fastening type | vertical |
| Supplementary article/supplementary info 2 | with cable |
| Width (mm) | 110 |
| Mounting type |
|
| Housing type | aluminium housing |
| Plug type | open cable ends |
| Voltage (V) |
|
| Cable length (mm) | 2000 |
| Prot.type (ip code) |
|
| Power consumption (W) | 13 |
| Lens type | patterned lens |
| Manufacturer | Productnumber |
| toyota | 0050201 |
| caterpillar | 146-2312 , 1462312 |
| caterpillar | 371-2131 , 3712131 |
| caterpillar | 5342669 |
| van hool | 11425775 |
| krone | 515025952 |
| yanmar | 5350661300 |
| faun | 5171 547 , 5171547 |
| faun | 5641 475 , 5641475 |
| o&k | 1462312 |
| hydrema | 7400917 |
| schwarzmÜller | 78360 |
| feldbinder | 1075458 |
| vdl | 11425775 |
| manitou | 314124 |
| broshuis | 35186269 |
| Usage numbers |
| Mega Beam LED |
| HELLA 1GM 996 136-101 |
| HELLA 1GM 996 136-191 |
| HELLA 1GM 996 136-192 |
| HELLA 1GM 996 136-311 |
| HELLA 1GM 996 136-312 |
| HELLA 1GM 996 136-317 |
| HELLA 996 136-311 |
| HELLA 996136311 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
