| Shape | oval |
| Light design | led |
| Fulfils ece standard | r10 |
| Housing colour | black |
| Overall height (mm) | 131 |
| Number of leds | 8 |
| Voltage from (V) | 9 |
| Voltage to (V) | 32 |
| Luminous flux (lm) | 4400 |

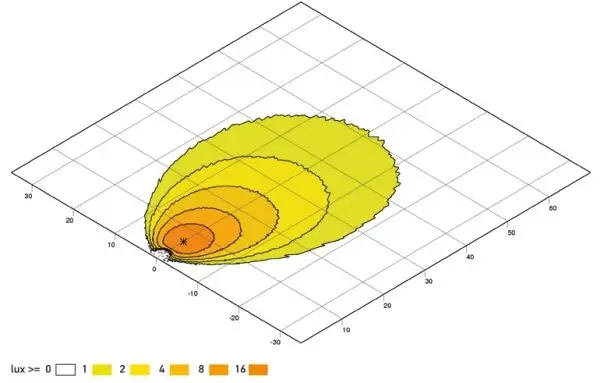

| Light distribution | short-range illumination |
| Light colour | white |
| Colour temperature (K) | 6500 |
| Lens material | pc (polycarbonate) |
| Lens type | patterned lens |
| Reverse polarity protection | yes |
| Lens colour | crystal clear |
| Registration type | ece approved |

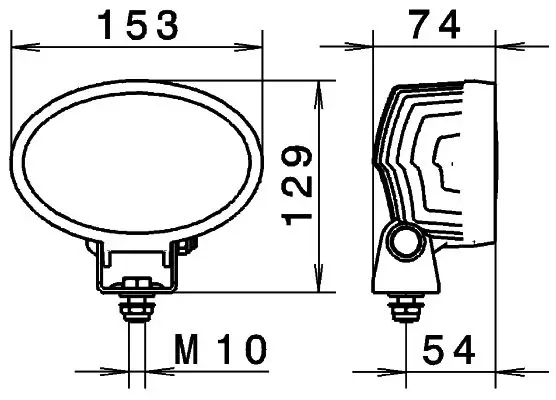

| Height (mm) | 98 |
| Quantity | 1 |
| Width (mm) | 153 |
| Mounting type | bracket mounting |
| Plug type | deutsch plug |
| Voltage (V) |
|
| Housing material | die-cast aluminium |
| Temperature range to (°C) | 50 |
| Temperature range from (°C) | -40 |
| Prot.type (ip code) |
|
| Weight (g) | 920 |
| Power consumption (W) |
|
| Lamp type | led |
| Depth (mm) | 74 |
| Theoretical luminous flux (lm) | 5500 |
| Manufacturer | Productnumber |
| claas | 11717490 |
| kubota | 3J0366245A |
| aebi | 1239025-4 , 12390254 |
| agco | 71481421 |
| agco | ACW1547170 |
| agco | ACW1655190 |
| agco | ACW2520710 |
| vÖgele | 2531437 |
| Usage numbers |
| 1558LED |
| Oval 100 LED Gen. II |
| HELLA 1GA 996 761-001 |
| HELLA 1GA 996 761-005 |
| HELLA 996 761-001 |
| HELLA 996761001 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
