| Shape | square |
| Light design | led |
| Fulfils ece standard | r10 |
| Housing colour | black |
| Overall height (mm) | 133 |
| Number of leds | 8 |
| Voltage from (V) | 9 |
| Voltage to (V) | 32 |
| Luminous flux (lm) | 4400 |
| Light distribution | long-range illumination |
| Light colour | white |
| Colour temperature (K) | 6500 |
| Lens material | glass |
| Lens type | clear lens |
| Reverse polarity protection | yes |
| Lens colour | crystal clear |
| Registration type | ece approved |
| Depth (mm) | 85 |
| Height (mm) | 106 |
| Supplementary article/supplementary info 2 | without cable |
| Quantity | 1 |
| Width (mm) | 115 |
| Mounting type | bracket mounting |

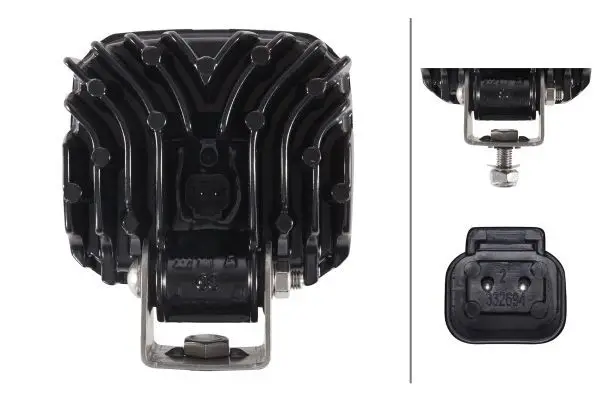

| Plug type | deutsch plug |
| Voltage (V) |
|
| Housing material | die-cast aluminium |
| Temperature range to (°C) | 50 |
| Temperature range from (°C) | -40 |
| Prot.type (ip code) |
|
| Weight (g) | 1076 |
| Power consumption (W) | 45 |
| Lamp type | led |
| Theoretical luminous flux (lm) | 5500 |
| Manufacturer | Productnumber |
| volvo | 53134950 |
| volvo | VOE53134950 |
| scania | 2881490 |
| faun | 9970-7046834 , 99707046834 |
| hydrema | 0240104 |
| rosenbauer | 891923-002 , 891923002 |
| Usage numbers |
| 1566LEDLR |
| Ultra Beam LED Gen. II |
| HELLA 1GA 995 606-011 |
| HELLA 1GA 996 196-011 |
| HELLA 995 606-011 |
| HELLA 995606011 |
| TIGER AF154 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
