| Shape | square |
| Light design | led |
| Fulfils ece standard | r10 |
| Housing colour | black |
| Overall height (mm) | 158 |
| Number of leds | 16 |
| Voltage from (V) | 12 |
| Voltage to (V) | 48 |
| Luminous flux (lm) | 5000 |
| Light distribution | short-range illumination |
| Light colour | white |
| Colour temperature (K) | 6000 |
| Lens material | pc (polycarbonate) |
| Lens type | patterned lens |
| Reverse polarity protection | yes |
| Lens colour | crystal clear |
| Registration type | ece approved |

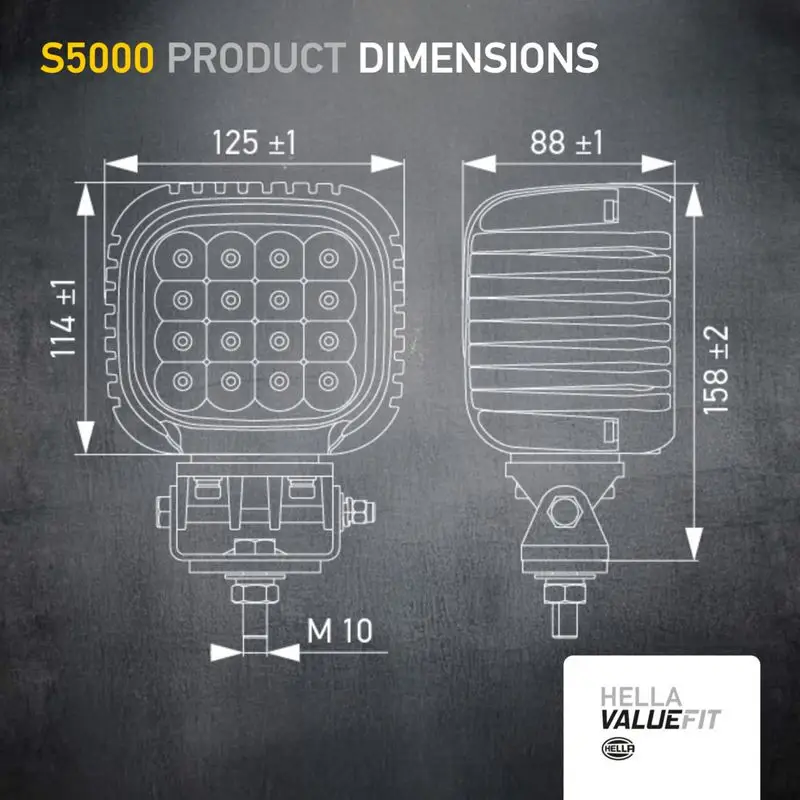

| Depth (mm) | 88 |
| Height (mm) | 114 |
| Quantity | 1 |
| Width (mm) | 125 |
| Mounting type | bracket mounting |

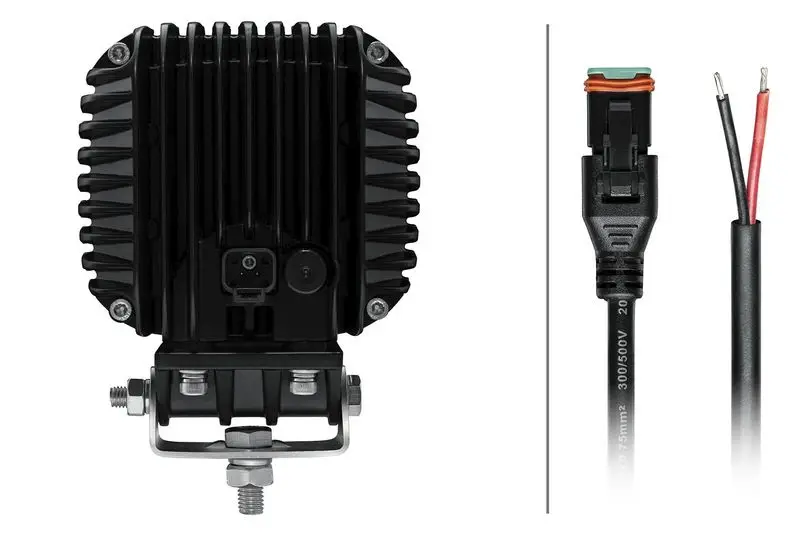

| Plug type | deutsch plug |
| Voltage (V) |
|
| Housing material | die-cast aluminium |
| Temperature range to (°C) | 60 |
| Temperature range from (°C) | -40 |
| Cable length (mm) | 800 |
| Prot.type (ip code) |
|
| Weight (g) | 1487 |
| Power consumption (W) | 45 |
| Lamp type | led |
| Theoretical luminous flux (lm) | 8300 |
| Manufacturer | Productnumber |
| Usage numbers |
| HELLA 1GA 357 109-201 |
| HELLA 357 109-201 |
| HELLA 357109201 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.
Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.
Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.
Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.
Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.
The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
