Search by registration number
VIN number / Chasis number
| Shape | square |
| Lens colour | crystal clear |
| Light design | led |
| Fulfils ece standard | r10 |
| Housing colour | black |

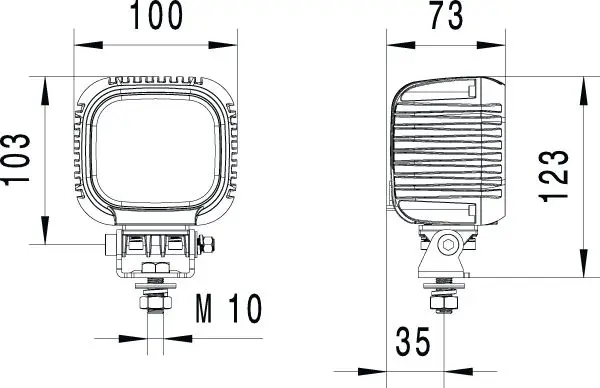

| Overall height (mm) | 123 |
| Number of leds | 9 |
| Voltage from (V) | 10 |
| Voltage to (V) | 52 |
| Luminous flux (lm) | 3000 |

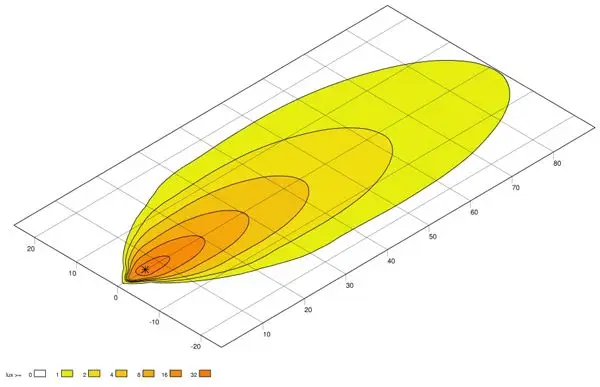

| Light distribution | long-range illumination |
| Light colour | white |
| Colour temperature (K) | 6500 |
| Lens material | pc (polycarbonate) |
| Lens type | clear lens |
| Registration type | ece approved |
| Depth (mm) | 73 |
| Height (mm) | 91 |
| Quantity | 1 |
| Width (mm) | 100 |
| Mounting type | bracket mounting |
| Plug type | deutsch plug |
| Voltage (V) |
|
| Housing material | die-cast aluminium |
| Temperature range to (°C) | +65 |
| Temperature range from (°C) | -40 |
| Cable length (mm) | 800 |
| Prot.type (ip code) |
|
| Weight (g) | 790 |
| Power consumption (W) | 31 |
| Lamp type | led |
| Theoretical luminous flux (lm) | 5600 |
| Manufacturer | Productnumber |
| Usage numbers |
| E24 10R-052113 |
| S3000 Long Range |
| HELLA 1GA 357 109-012 |
| HELLA 357 109-012 |
| HELLA 357109012 |
| HELLA E24 10R-052113 |
| HELLA S3000LONGRANGE |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
