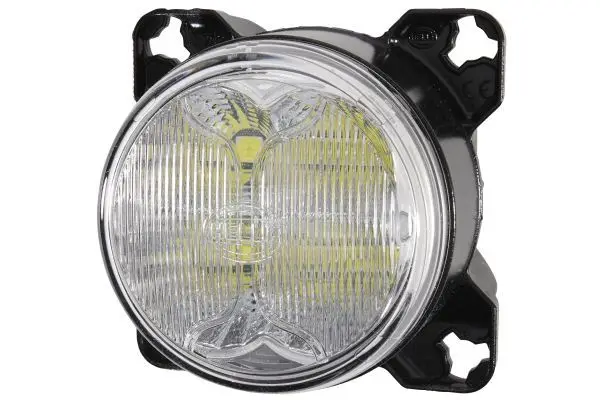

| Shape | round |
| Light design | led |
| Fulfils ece standard | r10 |
| Housing colour | black |
| Overall height (mm) | 103 |
| Number of leds | 4 |
| Voltage from (V) | 9 |
| Voltage to (V) | 32 |
| Luminous flux (lm) | 3800 |

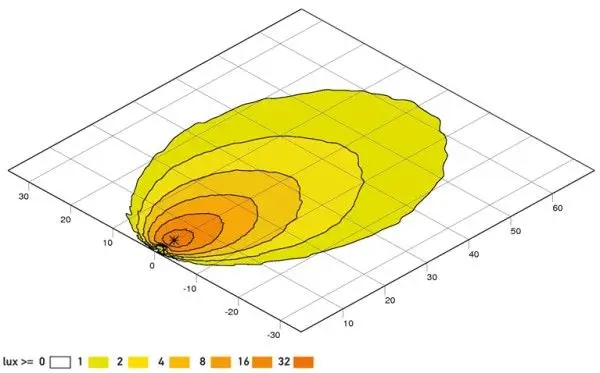

| Light distribution | short-range illumination |
| Light colour | white |
| Colour temperature (K) | 6500 |
| Lens material | polyamid 12 |
| Lens type | patterned lens |
| Reverse polarity protection | yes |
| Lens colour | crystal clear |
| Registration type | ece approved |

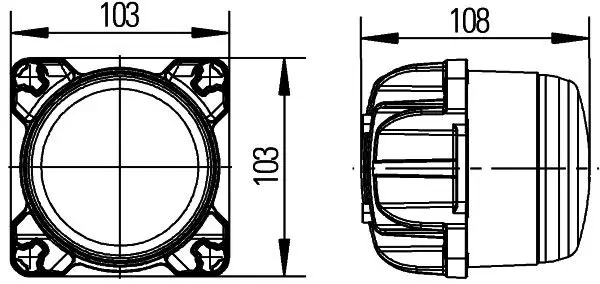

| Depth (mm) | 108 |
| Height (mm) | 85 |
| Quantity | 1 |
| Width (mm) | 103 |
| Mounting type | fitting |
| Plug type | deutsch plug |
| Voltage (V) |
|
| Housing material | die-cast aluminium |
| Temperature range to (°C) | 50 |
| Temperature range from (°C) | -40 |
| Prot.type (ip code) |
|
| Weight (g) | 663 |
| Power consumption (W) | 33 |
| Fastening type | four-point attachment |
| Lamp type | led |
| Theoretical luminous flux (lm) | 4750 |
| Manufacturer | Productnumber |
| liebherr | 1 221 194 2 , 12211942 |
| case ih | 47855631 |
| holmer | 1019055634 |
| kÄssbohrer | 7.517.168.000.0 , 75171680000 |
| agco | ACW0511960 |
| agco | ACW051196A |
| agco | G842 900 110 070 , G842900110070 |
| agco | H218PB2526010 |
| versatile | 86066077 |
| Usage numbers |
| Modul 90i LED |
| HELLA 1G0 996 263-001 |
| HELLA 1G0 996 263-501 |
| HELLA 1G0 996 263-505 |
| HELLA 1G0 996 263-591 |
| HELLA 996 263-501 |
| HELLA 996263501 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
