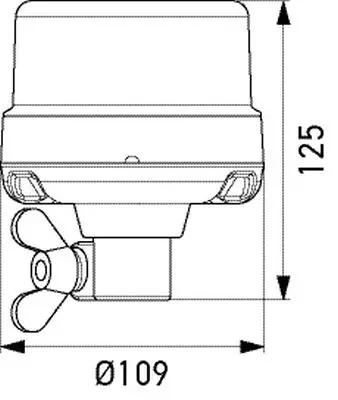

| Height (mm) | 125 |
| Registration type |
|
| Lens colour | yellow (amber) |
| Light design | led |
| Fulfils ece standard |
|
| Housing colour | black |
| Number of leds | 16 |
| Fulfils test standard | rcm |
| Light colour | yellow (amber) |
| Lens material | pc (polycarbonate) |
| Fulfils sae standard | j845 class 1 |
| Fulfils emc/cispr standard | class 5 |
| Light function | with flashing warning signal |
| Plug-type id | din standard |
| Lamp type | led |
| Quantity | 1 |
| Mounting type | flexible pipe sockets |
| Outer diameter 1 (mm) | 109 |
| Voltage (V) |
|
| Housing material | epdm (ethylene propylene diene monomer (m-class) rubber) |
| Temperature range to (°C) | +60 |
| Temperature range from (°C) | -40 |
| Cable length (mm) | 150 |
| Prot.type (ip code) |
|
| Weight (g) | 338 |
| Power consumption (W) | 19 |
| Flash rate per minute | 126 |
| Manufacturer | Productnumber |
| daf | 2281056 |
| john deere | AXE92636 |
| hitachi | ZE0000022100 |
| yanmar | 5050022302 |
| kubota | 3J03739951 |
| iseki | 32.7779.1 , 3277791 |
| agco | ACX4222570 |
| dieci | BEM2148 |
| dieci | BEM2148 V.00 , BEM2148V00 |
| bucher | 09300189-0 , 093001890 |
| amazone | NA305 |
| hÜffermann | 2-EL0003-139 , 2EL0003139 |
| grimme | B94.09228 , B9409228 |
| weiro | 26825 |
| Usage numbers |
| HELLA 066 146-011 |
| HELLA 066146011 |
| HELLA 2XD 066 146-011 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
