Supplementary article/supplementary info 2	without cooling duct with piston ring carrier
Net weight (g)	1761
Recess diameter (mm)	55.0
Recess depth 1 (mm)	20.0
Compression height (mm)	64.6
Piston clearance (mm)	0.1
Production number	97 l 3
Bolt length (mm)	82.5
Packaging height (cm)	14.30
Packaging width (cm)	11.60
Packaging length (cm)	11.6
Cyl.bore (mm)	98.0
Surface	coated
Bolt Ø (mm)	36.0
Component no.	1. t 3.0 cr 2. m 3.0 3. m 3.0 4. dsf 5.5 cr
Length (mm)	115.1
Top land height (mm)	16.4

Product number: 004 51 02

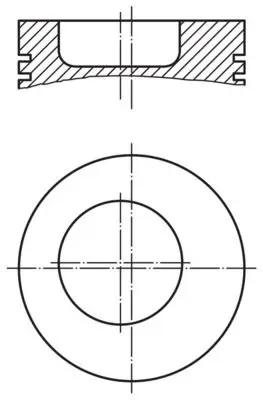

Mahle Piston With Rings Fits Mercedes AGL (RoundNose) FPN (FlatNose)

Out of Stock

Price incl. vat.

£ 96.10

Notify me when back in stock

Description

Piston

Manufacturer	Productnumber
mercedes-benz	344 030 64 17 , 3440306417
mercedes-benz	344 037 12 01 , 3440371201
mercedes-benz	352 030 06 19 , 3520300619
mercedes-benz	352 030 42 19 , 3520304219
mercedes-benz	352 030 76 18 , 3520307618
mercedes-benz	352 030 92 17 , 3520309217
mercedes-benz	352 037 29 05 , 3520372905
mercedes-benz	352 037 96 05 , 3520379605
mercedes-benz	353 030 14 17 , 3530301417
mercedes-benz	353 030 23 17 , 3530302317
mercedes-benz	353 030 31 17 , 3530303117
mercedes-benz	353 037 16 01 , 3530371601
mercedes-benz	A344 030 64 17 , A3440306417
mercedes-benz	A344 037 12 01 , A3440371201
mercedes-benz	A352 030 06 19 , A3520300619
mercedes-benz	A352 030 42 19 , A3520304219
mercedes-benz	A352 030 76 18 , A3520307618
mercedes-benz	A352 030 92 17 , A3520309217
mercedes-benz	A352 037 29 05 , A3520372905
mercedes-benz	A352 037 96 05 , A3520379605
mercedes-benz	A353 030 14 17 , A3530301417
mercedes-benz	A353 030 23 17 , A3530302317
mercedes-benz	A353 030 31 17 , A3530303117
mercedes-benz	A353 037 16 01 , A3530371601

Usage numbers
56 12408 2X
97 L 3

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
mercedes-benz
