Supplementary article/supplementary info 2	with cooling duct with piston ring carrier
Top land height (mm)	13
Net weight (g)	836
Valve pocket depth 1 (mm)	2.4
Recess diameter (mm)	19
Recess depth 1 (mm)	4.6
Compression height (mm)	44.9
Piston clearance (mm)	0.06
Production number	87 l 29
Bolt length (mm)	70.0
Packaging height (cm)	12.80
Packaging width (cm)	9.50
Packaging length (cm)	9.5
Cyl.bore (mm)	87.0
Surface	hard anodized
Bolt Ø (mm)	28.0
Component no.	3. dsf 3.0 cr 1. r 2.5 mo 2. m 2.0 if mo
Length (mm)	76.2
Valve pocket depth 2 (mm)	2.3

Product number: 001 02 00

Mahle Piston With Rings Fits Mercedes C-Class E-Class

Out of Stock

Price incl. vat.

£ 149.11

Notify me when back in stock

Description

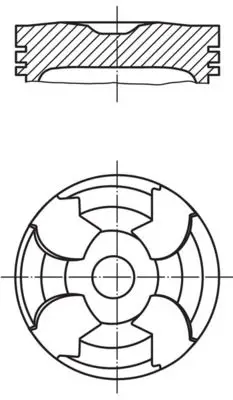

Piston

Manufacturer	Productnumber
mercedes-benz	601 030 01 17 , 6010300117
mercedes-benz	605 030 00 17 , 6050300017
mercedes-benz	605 030 01 17 , 6050300117
mercedes-benz	605 030 02 17 , 6050300217
mercedes-benz	605 030 04 17 54 , 605030041754
mercedes-benz	605 030 0417 , 6050300417
mercedes-benz	605 037 00 01 , 6050370001
mercedes-benz	A601 030 01 17 , A6010300117
mercedes-benz	A605 030 00 17 , A6050300017
mercedes-benz	A605 030 01 17 , A6050300117
mercedes-benz	A605 030 02 17 , A6050300217
mercedes-benz	A605 030 04 17 , A6050300417
mercedes-benz	A605 030 04 17 54 , A605030041754
mercedes-benz	A605 037 00 01 , A6050370001

Usage numbers
001 PI 00002 100
56 01308 0
87 L 29

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
