Fitting position	right
Svhc	7439-92-1; lead 1317-36-8; lead monoxide (lead oxide)
Light function	with position light (led) with high beam (led)
Lens colour	crystal clear
Number of light functions	3
Fulfils ece standard	r10
Housing colour	black

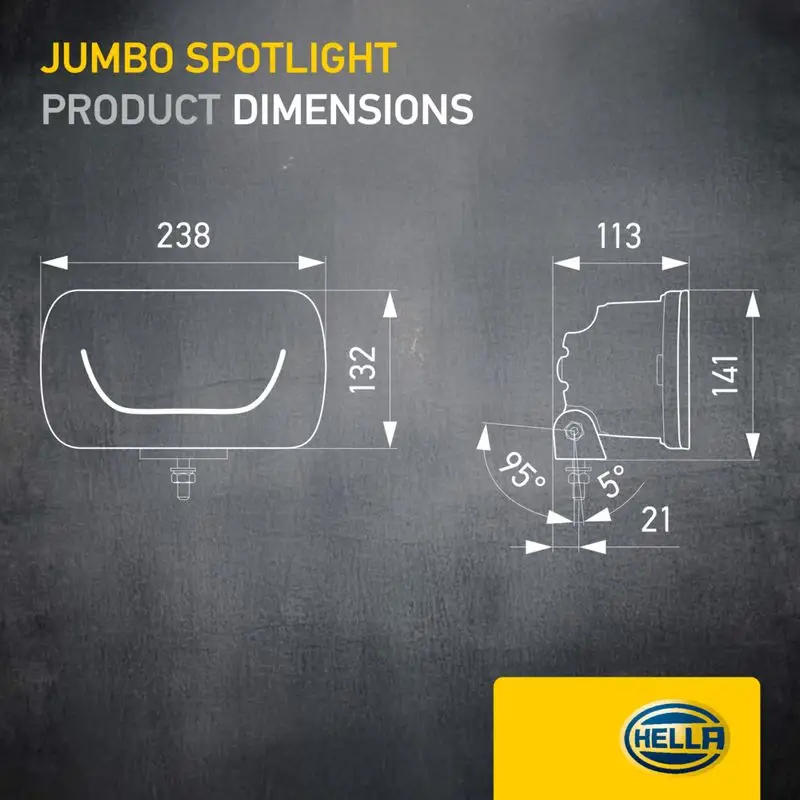

Overall height (mm)	141
Number of leds	5
Voltage from (V)	9
Voltage to (V)	32
Luminous flux (lm)	541
Light distribution	off-road illumination
Light colour	white yellow (amber)
Colour temperature (K)	6000
Lens material	plastic
Depth (mm)	113
Length (Inch)	5
Lamp type	led
Shape	rectangular
Height (mm)	132
Quantity	1
Width (mm)	238
Mounting type	bolted
Housing type	synthetic material housing
Plug type	open cable ends
Voltage (V)	12 24
Housing material	thermoplast
Cable length (mm)	800
Fitting depth (mm)	23
Prot.type (ip code)	ip6k7 ipx9k
Weight (g)	680
Power consumption (W)	1.3 2.7
Fastening type	suspended
Lens type	clear lens

Product number: 1FE016773-031

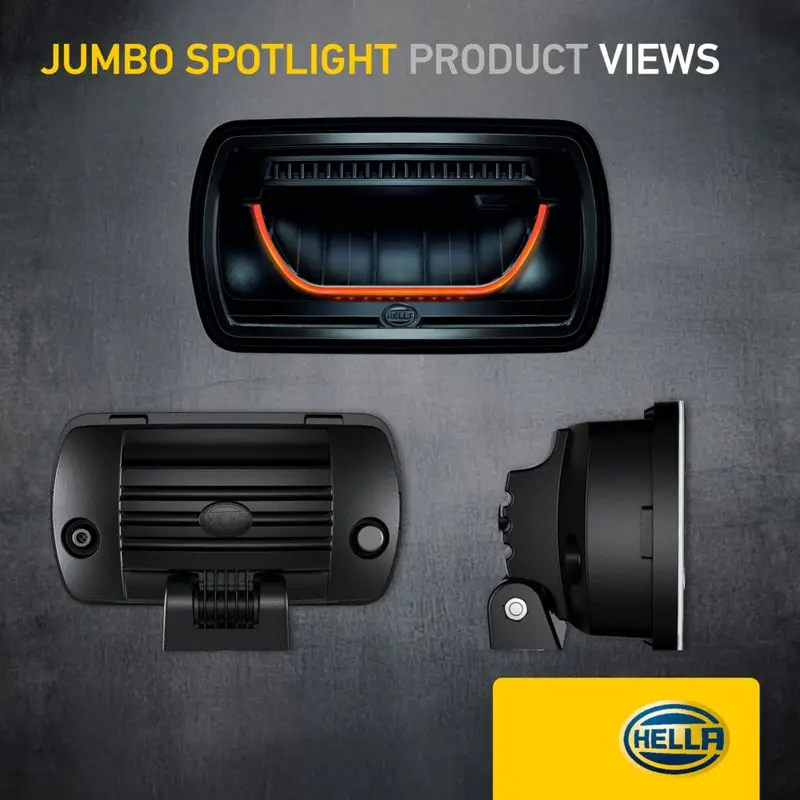

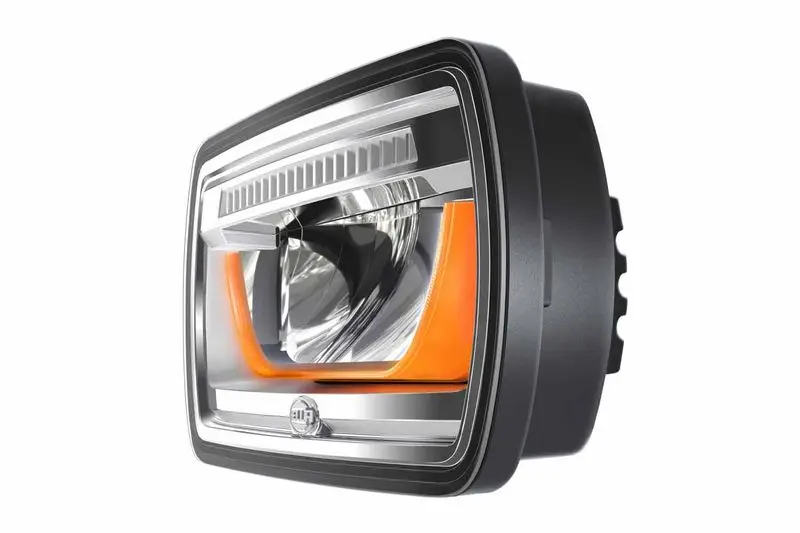

Hella 1FE016773-031 Led Spotlight

In stock

Price incl. vat.

£ 181.96

Buy Now

Description

Manufacturer	Productnumber

Usage numbers
HELLA 016 773-031
HELLA 016773031
HELLA 1FE 016 773-031

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
