Fitting position	left right
Fulfils ece standard	r48
Left-hand/right-hand traffic	for right-hand traffic
Number of light functions	2
Light design	led de
Registration type	ece approved
Light function	with high beam (led) with low beam (led)

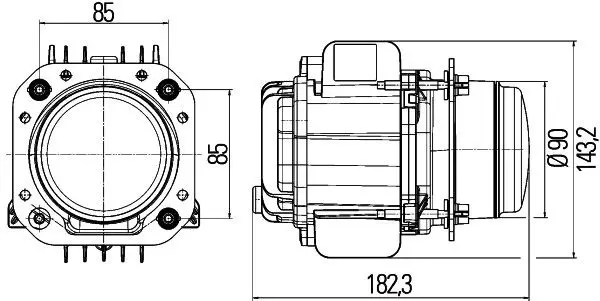

Depth (mm)	182
Lamp type	led
Voltage (V)	24
Plug type	amp

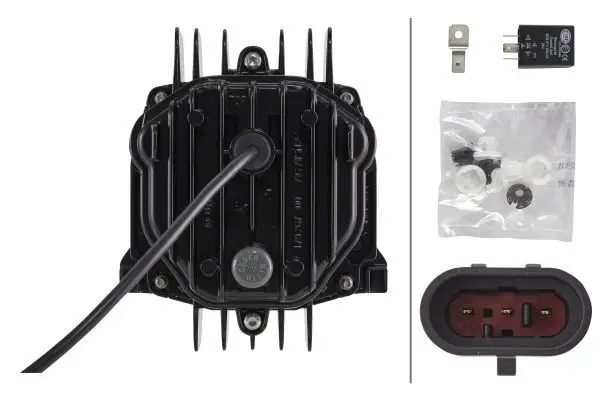

Supplementary article/supplementary info	with control unit
Mounting type	fitting
Width (mm)	143
Outer diameter (mm)	110
Height (mm)	143
Shape	round
Illuminated area (mm)	90

Product number: 1AL010820-851

Hella 1AL010820-851 Left Or Right LED Headlight

Description

Manufacturer	Productnumber
volvo	22576789
kÄssbohrer	7.512.311.000.0 , 75123110000
tam	12680026
paus	558790
bucher	7653-7930 , 76537930

Usage numbers
90 mm LED Modul
E1 3159
E1 6189
HELLA 010 820-851
HELLA 010820851
HELLA 1AL 010 820-021
HELLA 1AL 010 820-851
HELLA E1 3159
HELLA E1 6189

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
