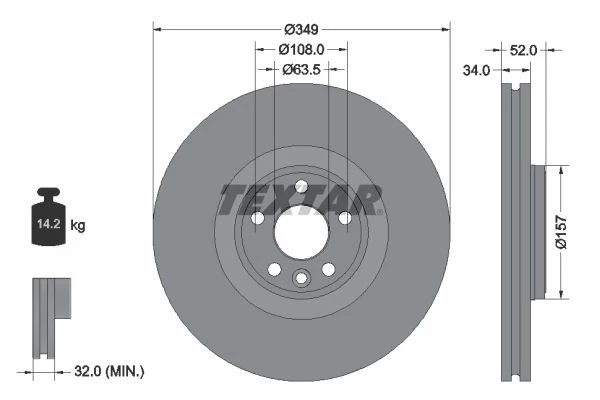

| Hole pitch/number | 05/06 |
| Packaging height (cm) | 7 |
| Packaging width (cm) | 36.8 |
| Packaging length (cm) | 36.8 |
| Weight (kg) | 14.2 |
| Brake disc type | internally vented |
| Min. thickness (mm) | 32 |
| Centering diameter (mm) | 63.5 |
| Surface | coated |
| Brake disc thickness (mm) | 34 |
| Machining | high-carbon |
| Wheel bolt bore Ø (mm) | 15.6 |
| Bolt hole circle Ø (mm) | 108 |
| Inner diameter (mm) | 145 |
| Outer diameter (mm) | 349 |
| Supplementary article/supplementary info 2 |
|
| Height (mm) | 52 |
| Fitting position | Front |
| Usage numbers |
| A.B.S. 09C49211 |
| A.B.S. 09C98223 |
| A.B.S. 18741 |
| APEC DSK3468 |
| ATE 24013401191 |
| ATE-APAC 24013401191 |
| BENDIX Braking BDS1586HC |
| BLUE PRINT ADJ134371 |
| BORG & BECK BBD6221S |
| BRECO BV9337 |
| BRECO BZ9538 |
| BREMBO 09C49211 |
| BREMBO 09C98223 |
| BREMSI CD9051V |
| CAR 1422046 |
| COMLINE ADC5045V |
| COMLINE AND7327 |
| DBA Australia DBA3662E |
| DBA Australia DBA3662S |
| DELPHI BG9346C |
| DELPHI BG9346C18B1 |
| EBC Brakes D2195 |
| EUROBRAKE 5815314057 |
| EUROREPAR 1681168980 |
| FEBI BILSTEIN 108690 |
| FERODO DDF3051C1 |
| FERODO DDF3079 |
| FREMAX BD6773 |
| HELLA 8DD355131961 |
| HELLA PAGID 355131961 |
| HELLA PAGID 8DD355131961 |
| HERTH+BUSS JAKOPARTS J3300850 |
| ICER 78BD67731 |
| JAPANPARTS DIL17 |
| JAPANPARTS DIL17C |
| JURATEK LAN135 |
| JURID 563695JC1 |
| JURID 563723JVC1 |
| LPR A4036VR |
| MEYLE 53835210020PD |
| MINTEX MDC2862C |
| MOTAQUIP LVBD1948 |
| NK 314057 |
| OPTIMAL BS9796HC |
| PAGID 56018HC |
| PAGID 56018NHC |
| QUINTON HAZELL BDC6200 |
| SWAG 33100169 |
| TEXTAR 98200301801 |
| VAICO V4140005 |
| VALEO 673306 |
| ZIMMERMANN 450522520 |
| ZIMMERMANN 450522552 |
| ZIMMERMANN 450522554 |
| ZIMMERMANN 450522555 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 jaguar |
||||||||
 land rover |
All our standard discs are priced individually, but due to the safety critical aspect of the braking system, Brake Discs must now be purchased in pairs where required and we will add a quantity of 2 to your basket. (Some high-performance discs are sold as a set of two). Our brake pads are sold as a front set or rear set, so purchasing one box will be enough for two discs
See the diameter on the right side of the product image .The best way to ensure you get the correct brake discs is to check the diameter of the brake discs already fitted.
Simply enter your vehicle registration or VIN on our website. Our built-in system will automatically show you the correct brake discs for your car. You can also message us if you need help.
On average, brake discs last between 30,000–70,000 miles, but this varies based on driving style and conditions. Look out for signs like vibrations, noise, or visible wear.
All our brake discs are brand new and meet or exceed OEM standards.
